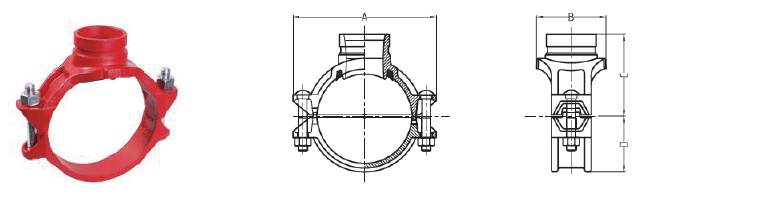

XGQT3 Mechanical Tee
JOINT
(Groove Type)
XGQT3S Mechanical Tee
JOINT
(Socket Type)
XGQT1 fixed joint
(for firefighting pipe
branch pipe)

C1R 1024 Fixed Check JOINT (General / Angle Pad Type)

Model C1R 1024 fixed check joint is designed with a diagonal structure and maintains a fixed connection only by tightening bolts/nuts, making it suitable for piping around pumps, fire-fighting piping, and sanitary piping that can withstand bending and torsional loads of pipes. The product suppresses fluidity in pipes and maintains a firm connection.

Model C1R 1024 fixed check joint is suitable for vertical piping, horizontal piping, and machine room piping where flexibility is not required. The maximum operating pressure is 24kgf/cm², so it can be applied to piping lines that require safety, and is a product that can withstand bending and torsional loads through a firm connection (joint) to the pipe. The nut fastening part of the main body has a groove for a loosening device identical to that of the anti-loosening nut, which prevents the nut from loosening due to shaking or vibration of the pipe.

SIZE		OUTSIDE DIAMETER (O.D)	WORKING PRESSURE	JOINT DIMENSIONS			BOLT SIZE	SPANNER SIZE	WEIGHT
mm	in	mm	kgf/cm²	A	B	C	mm	mm	kg
50A	2	60.3	24	85.5	128	51	M12 x 75	18	1.2
65A	2½	76.3	24	101.6	148	51	M12 x 75	18	1.3
80A	3	88.9	24	114.6	161	51	M12 x 75	18	1.4
100A	4	114.3	24	145.6	192	53	M12 x 75	18	1.6
125A	5	139.7	21	173	236	53	M16 x 75	24	2.7
150A	6	165.1	21	199	263	53	M16 x 75	24	3.1
200A	8	216.3	21	256	344	63	M22 x 130	32	4.7

* Groove depth should be formed according to the dimensions determined by our company for perfect assembly.

SIZE	OUTSIDE DIAMETER (O.D)	BENDING ANGLE	WORKING PRESSURE	JOINT DIMENSIONS	BOLT SIZE	SPANNER SIZE	WEIGHT
mm	in	mm	deg	kgf/cm²	A	B	C	mm	mm	kg
50A	2	60.3	1° 30′	35	85	131	51	M12×75	18	1.1
65A	2½	76.3	1° 12′	35	102	150	51	M12×75	18	1.3
80A	3	88.9	1° 10′	35	114	160	51	M12×75	18	1.4
100A	4	114.3	1° 32′	35	145	193	53	M12×75	18	1.8
125A	5	139.7	1° 20′	35	171	236	53	M16×75	24	2.5
150A	6	165.1	1° 08′	35	171	236	53	M16×75	24	2.8
200A	8	216.3	0° 55′	35	256	336	66	M22×130	32	5.11

SIZE	OUTSIDE DIAMETER (O.D)	MAXIMUM CLEARANCE	BENDING ANGLE	WORKING PRESSURE	JOINT DIMENSIONS	BOLT SIZE	SPANNER SIZE	WEIGHT
mm	in	mm	mm	deg	kgf/cm²	A	B	C	mm	mm	kg
50A	2	60.3	1.2	0° 60′	52	85	127	49	M12×75	18	1.2
65A	2½	76.3	1.2	0° 58′	52	103	147	49	M12×75	18	1.4
80A	3	88.9	1.2	0° 57′	52	117	160	50	M12×75	18	1.5
100A	4	114.3	1.3	0° 61′	52	145	195	51	M12×75	18	2.0
125A	5	139.7	1.3	0° 59′	52	173	232	53	M16×75	24	2.7
150A	6	165.1	1.5	0° 31′	52	198	260	53	M16×75	24	3.2
200A	8	216.3	1.5	0° 51′	32	259	335	63	M22×130	32	6.9
250A	10	267.4	1.6	0° 51′	32	320	405	63	M22×130	32	7.5
300A	12	318.5	1.6	0° 47′	32	371	455	63	M22×130	32	9.4
350A	14	355.6	1.7	0° 45′	32	400	490	76	M22×130	32	10.3
400A	16	406.4	1.7	0° 45′	32	400	546	76	M22×130	32	12.2

SIZE	WORKING PRESSURE	JOINT DIMENSIONS	BOLT SIZE	Perforation SIZE (Ø)
mm	kgf/cm²	A	B	C	D	mm	Lu	Zh
100×50	21	177	102	96	67	M12×75	64	64
100×65	21	177	110	96	67	M12×75	81	70
125×65	21	211	110	108	79	M16×100	81	70
150×50	21	237	103	117	91	M16×110	64	64
150×65	21	237	111	123	91	M16×110	81	70

SIZE	WORKING PRESSURE	JOINT DIMENSIONS	BOLT SIZE	PERFORATION SIZE (Ø)
mm	kgf/cm²	A	B	C	D	mm	Lu	Zh
50×25	21	114	70	59	39	M10×60	38	38
65×25	21	130	70	67	47	M10×65	38	38
65×32	21	130	77	69	47	M10×65	46	51
65×40	21	130	77	69	47	M10×65	52	51
80×25	21	148	72	75	54	M12×75	38	38
80×32	21	148	87	75	54	M12×75	46	51
80×40	21	148	87	75	54	M12×75	52	51
80×50	21	148	100	79	54	M12×75	64	64
100×25	21	177	72	87	67	M12×75	38	38
100×32	21	177	87	87	67	M12×75	46	51
100×40	21	177	87	87	67	M12×75	52	51
100×50	21	177	102	93	67	M12×75	64	64
100×65	21	177	110	97	67	M12×75	81	70
125×25	21	210	75	100	79	M16×100	38	38
125×32	21	210	88	100	79	M16×100	46	51
125×40	21	210	88	100	79	M16×100	52	51
125×50	21	210	103	105	79	M16×100	64	64
150×25	21	236	75	112	91	M16×110	38	38
150×32	21	236	89	112	91	M16×110	46	51
150×40	21	236	89	112	91	M16×110	52	51
150×50	21	236	103	117	91	M16×110	64	64
150×65	21	236	111	122	91	M16×110	81	70
