ELBOW

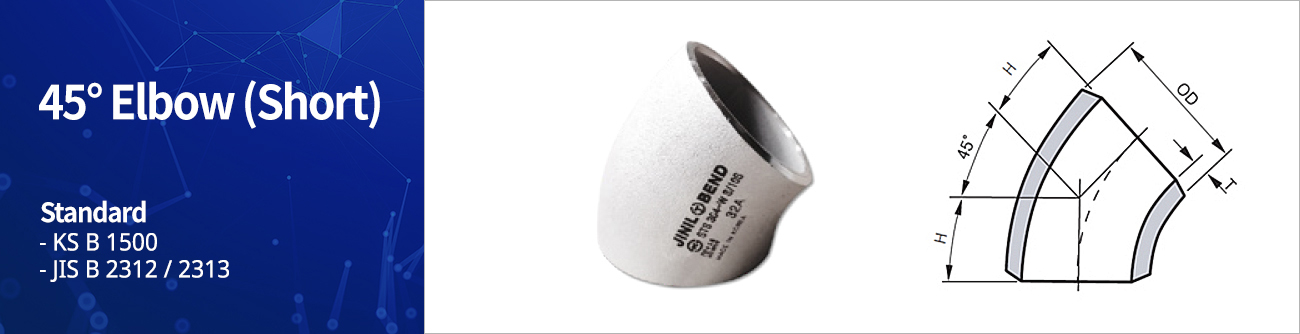

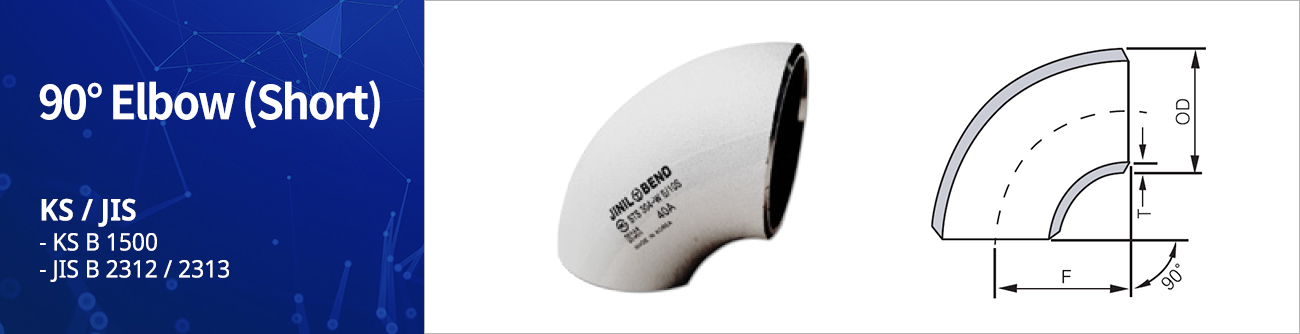

| KS B 1500 , JIS B 2312 / 2313 | UNIT : mm | ||||||||||
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER (O.D) |
WALL THICKNESS(T) | CENTER TO END |
WEIGHT(KG) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B(in) | SCH 10S | SCH 20S | SCH 40 (KS : S40S) |
SCH 80 (KS : S80S) |
F | SCH 10S | SCH 20S | SCH 40 (KS : S40S) |
SCH 80 (KS : S80S) |
|
| 15 | 1/2 | 21.70 | 2.1 | 2.5 | 2.8 | 3.7 | 38.1 | 0.06 | 0.07 | 0.08 | 0.10 |
| 20 | 3/4 | 27.20 | 2.1 | 2.5 | 2.9 | 3.9 | 38.1 | 0.08 | 0.09 | 0.11 | 0.14 |
| 25 | 1 | 34.00 | 2.8 | 3.0 | 3.4 | 4.5 | 38.1 | 0.13 | 0.14 | 0.16 | 0.20 |
| 32 | 1¼ | 42.70 | 2.8 | 3.0 | 3.6 | 4.9 | 47.6 | 0.21 | 0.22 | 0.26 | 0.35 |
| 40 | 1½ | 48.60 | 2.8 | 3.0 | 3.7 | 5.1 | 57.2 | 0.29 | 0.31 | 0.37 | 0.50 |
| 50 | 2 | 60.50 | 2.8 | 3.5 | 3.9 | 5.5 | 76.2 | 0.48 | 0.59 | 0.66 | 0.90 |
| 65 | 2½ | 76.30 | 3.0 | 3.5 | 5.2 | 7.0 | 95.3 | 0.81 | 0.95 | 1.38 | 1.81 |
| 80 | 3 | 89.10 | 3.0 | 4.0 | 5.5 | 7.6 | 114.3 | 1.17 | 1.52 | 2.06 | 2.77 |
| 90 | 3½ | 101.60 | 3.0 | 4.0 | 5.7 | 8.1 | 133.4 | 1.54 | 2.04 | 2.85 | 3.95 |
| 100 | 4 | 114.30 | 3.0 | 4.0 | 6.0 | 8.6 | 152.4 | 1.99 | 2.63 | 3.89 | 5.42 |
| 125 | 5 | 139.80 | 3.4 | 5.0 | 6.6 | 9.5 | 190.5 | 3.46 | 5.02 | 6.55 | 9.23 |
| 150 | 6 | 165.20 | 3.4 | 5.0 | 7.1 | 11.0 | 228.6 | 4.92 | 7.17 | 10.04 | 15.17 |
| 200 | 8 | 216.30 | 4.0 | 6.5 | 8.2 | 12.7 | 304.8 | 10.13 | 16.27 | 20.35 | 30.84 |
| 250 | 10 | 267.40 | 4.0 | 6.5 | 9.3 | 15.1 | 381.0 | 15.71 | 25.28 | 35.79 | 56.80 |
| 300 | 12 | 318.50 | 4.5 | 6.5 | 10.3 | 17.4 | 457.2 | 25.28 | 36.28 | 56.80 | 93.74 |
| 350 | 14 | 355.60 | 5.0 | 8.0 | 11.1 | 19.0 | 533.4 | 36.59 | 58.05 | 79.82 | 133.49 |
| 400 | 16 | 406.40 | 5.0 | 8.0 | 12.7 | 21.4 | 609.6 | 47.88 | 76.03 | 119.28 | 196.55 |
| 450 | 18 | 457.20 | 5.0 | 8.0 | 14.3 | 23.8 | 685.8 | 60.68 | 96.44 | 169.97 | 276.83 |
| 500 | 20 | 508.00 | 5.5 | 9.5 | 15.1 | 26.2 | 762.0 | 82.41 | 141.22 | 221.94 | 376.41 |
| 550 | 22 | 558.80 | 5.5 | 9.5 | 15.9 | 28.6 | 838.2 | 99.82 | 171.17 | 283.14 | 497.39 |
| 600 | 24 | 609.60 | 6.5 | 9.5 | 17.5 | 31.0 | 914.4 | 140.28 | 204.00 | 370.78 | 641.83 |
| 650 | 26 | 660.40 | 8.0 | 12.7 | 18.9 | - | 990.6 | 202.32 | 318.87 | 470.00 | 825.60 |
| 700 | 28 | 711.20 | 8.0 | 12.7 | 17.5 | - | 1066.8 | 234.85 | 370.34 | 506.80 | - |
| 750 | 30 | 762.00 | 8.0 | 12.7 | 17.5 | - | 1143.0 | 269.81 | 425.65 | 582.76 | - |
| 800 | 32 | 812.80 | 8.0 | 12.7 | 17.5 | - | 1219.2 | 307.18 | 484.80 | 664.03 | - |
| 850 | 34 | 863.60 | 8.0 | 12.7 | 17.5 | - | 1295.4 | 346.98 | 547.81 | 750.60 | - |
| 900 | 36 | 914.40 | 8.0 | 12.7 | 19.1 | - | 1371.6 | 389.21 | 614.66 | 917.85 | - |
| 950 | 38 | 965.20 | - | - | - | - | 1447.8 | - | - | - | - |
| 1000 | 40 | 1016.0 | 9.5 | 14.3 | - | - | 1524.0 | 570.25 | 854.28 | - | - |
| 1050 | 42 | 1066.8 | - | - | - | - | 1600.2 | - | - | - | - |
| 1100 | 44 | 1117.6 | - | - | - | - | 1676.4 | - | - | - | - |
| 1150 | 46 | 1168.4 | - | - | - | - | 1752.6 | - | - | - | - |
| 1200 | 48 | 1219.2 | - | - | - | - | 1828.8 | - | - | - | - |

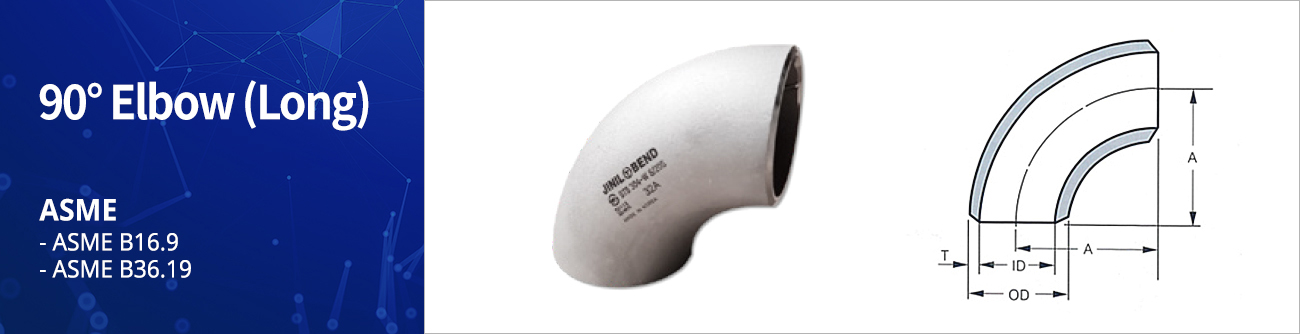

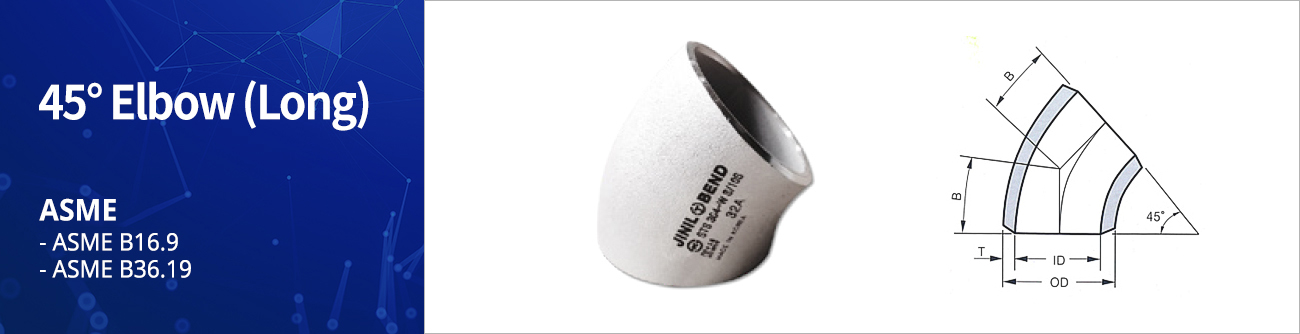

| ASME B16.9, ASME B36.19 | UNIT : mm (Inch=>mm 환산) | ||||||||
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER (O.D) |
WALL THICKNESS(T) | CENTER TO END |
WEIGHT(KG) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | SCH 10S | SCH 40S | SCH 80S | A | SCH 10S | SCH 40S | SCH 80S | |
| 1/2 | 15 | 21.3 | 2.11 | 2.77 | 3.73 | 38.1 | 0.06 | 0.08 | 0.10 |
| 3/4 | 20 | 26.7 | 2.11 | 2.87 | 3.91 | 38.1 | 0.08 | 0.11 | 0.14 |
| 1 | 25 | 33.4 | 2.77 | 3.38 | 4.55 | 38.1 | 0.13 | 0.16 | 0.20 |
| 1¼ | 32 | 42.2 | 2.77 | 3.56 | 4.85 | 47.6 | 0.20 | 0.26 | 0.35 |
| 1½ | 40 | 48.3 | 2.77 | 3.68 | 5.08 | 57.2 | 0.28 | 0.36 | 0.50 |
| 2 | 50 | 60.3 | 2.77 | 3.91 | 5.54 | 76.2 | 0.48 | 0.66 | 0.90 |
| 2½ | 65 | 73.0 | 3.05 | 5.16 | 7.01 | 95.3 | 0.80 | 1.31 | 1.79 |
| 3 | 80 | 88.9 | 3.05 | 5.49 | 7.62 | 114.3 | 1.17 | 2.05 | 2.77 |
| 3½ | 90 | 101.6 | 3.05 | 5.74 | 8.08 | 133.4 | 1.57 | 2.87 | 3.94 |
| 4 | 100 | 114.3 | 3.05 | 6.02 | 8.56 | 152.4 | 2.02 | 3.89 | 5.40 |
| 5 | 125 | 141.3 | 3.40 | 6.55 | 9.53 | 190.5 | 3.50 | 6.58 | 9.36 |
| 6 | 150 | 168.3 | 3.40 | 7.11 | 10.97 | 228.6 | 5.02 | 10.25 | 15.44 |
| 8 | 200 | 219.1 | 3.76 | 8.18 | 12.70 | 304.8 | 9.66 | 20.58 | 31.27 |
| 10 | 250 | 273.0 | 4.19 | 9.27 | 12.70 | 381.0 | 16.79 | 36.45 | 49.29 |
| 12 | 300 | 323.8 | 4.57 | 9.53 | 12.70 | 457.2 | 26.10 | 53.59 | 70.69 |
| 14 | 350 | 355.6 | 4.78 | 9.53 | 12.70 | 533.4 | 35.00 | 68.84 | 90.90 |
| 16 | 400 | 406.4 | 4.78 | 9.53 | 12.70 | 609.6 | 40.20 | 90.23 | 119.28 |
| 18 | 450 | 457.2 | 4.78 | 9.53 | 12.70 | 685.8 | 58.04 | 114.50 | 151.50 |
| 20 | 500 | 508.0 | 5.54 | 9.53 | 12.70 | 762.0 | 83.01 | 141.65 | 187.57 |
| 22 | 550 | 558.8 | 5.54 | *9.53 | *12.70 | 838.2 | 100.54 | 171.70 | 227.49 |
| 24 | 600 | 609.6 | 6.35 | 9.53 | 12.70 | 914.4 | 137.07 | 204.63 | 271.26 |
| 26 | 650 | 660.4 | *7.92 | *9.53 | *12.70 | 990.6 | 200.32 | 240.45 | 318.87 |
| 28 | 700 | 711.2 | *7.92 | *9.53 | *12.70 | 1066.8 | 232.53 | 279.16 | 370.34 |
| 30 | 750 | 762.0 | 7.92 | *9.53 | *12.70 | 1143.0 | 267.14 | 320.75 | 425.65 |
| 32 | 800 | 812.8 | *7.92 | *9.53 | *12.70 | 1219.2 | 304.14 | 365.23 | 484.80 |
| 34 | 850 | 863.6 | *7.92 | *9.53 | *12.70 | 1295.4 | 343.54 | 412.60 | 547.81 |
| 36 | 900 | 914.4 | *7.92 | *9.53 | *12.70 | 1371.6 | 385.35 | 462.86 | 614.66 |
| 38 | 950 | 965.2 | - | *9.53 | *12.70 | 1447.8 | - | 516.00 | 685.36 |
| 40 | 1000 | 1016.0 | - | *9.53 | *12.70 | 1524.0 | - | 572.03 | 759.91 |
| 42 | 1050 | 1066.8 | - | *9.53 | *12.70 | 1600.2 | - | 630.95 | 838.31 |
| 44 | 1100 | 1117.6 | - | *9.53 | *12.70 | 1676.4 | - | 692.76 | 920.55 |
| 46 | 1150 | 1168.4 | - | *9.53 | *12.70 | 1752.6 | - | 757.45 | 1006.64 |
| 48 | 1200 | 1219.2 | - | *9.53 | *12.70 | 1828.8 | - | 825.03 | 1096.58 |
Asterisks(*) denote JINILBEND Standards as no internationally Recongnized Standards for these wall thickness have been estabilshed.
