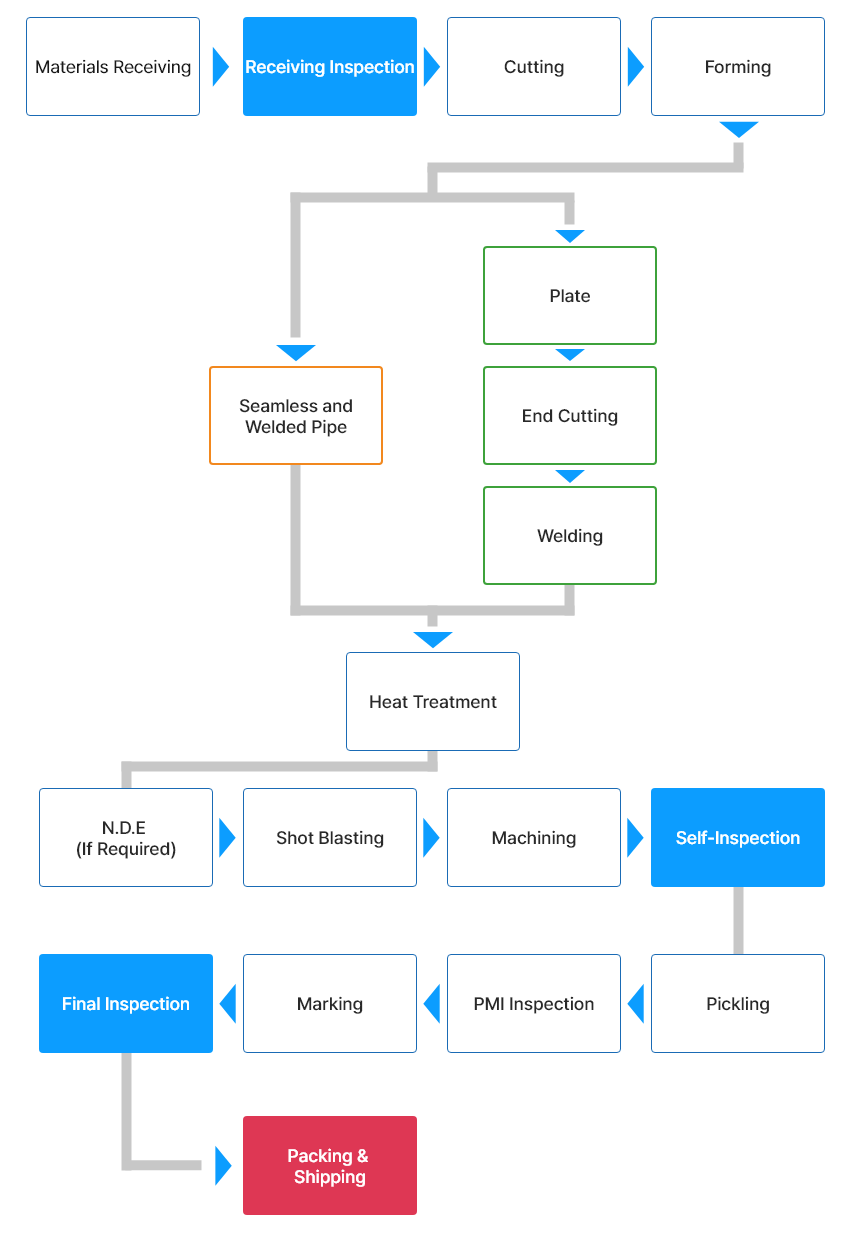

  • Cap

Cap



Standard

- KS B 1541, 1543
- JIS B 2312, 2313

Nomimal Pipe Size Outside Diameter(O.D) Wall Thickness(T) Center to End Weight(kg)
A B(in) KS/JIS ASME Sch 10 Sch 20 Sch 40 A Sch 10 Sch 20 Sch 40
15 1/2 21.70 21.34 2.1 2.5 2.8 25.4 0.03 0.03 0.04
20 3/4 27.20 26.67 2.1 2.5 2.9 25.4 0.04 0.04 0.05
25 1 34.00 33.40 2.8 3.0 3.4 38.1 0.09 0.10 0.11
32 1 1/4 42.70 42.16 2.8 3.0 3.6 38.1 0.11 0.12 0.14
40 1 1/2 48.60 48.26 2.8 3.0 3.7 38.1 0.13 0.14 0.17
50 2 60.50 60.32 2.8 3.5 3.9 38.1 0.17 0.21 0.24
65 2 1/2 76.30 73.02 3.0 3.5 5.2 38.1 0.23 0.28 0.42
80 3 89.10 88.90 3.0 4.0 5.5 50.8 0.37 0.48 0.67
90 3 1/2 101.60 101.60 3.0 4.0 5.5 50.8 0.37 0.48 0.67
100 4 114.30 114.30 3.0 4.0 6.0 63.5 0.59 0.78 1.17
125 5 139.80 141.30 3.4 5.0 6.6 76.2 0.99 1.44 1.90
150 6 165.20 168.30 3.4 5.0 7.1 88.9 1.39 1.99 2.83
200 8 216.30 219.08 4.0 6.5 8.2 101.6 2.38 4.05 5.11
250 10 267.40 273.05 4.0 6.5 9.3 127.0 4.13 6.23 8.92
300 12 318.50 323.80 4.5 6.5 10.3 152.4 6.39 8.89 13.10
350 14 355.60 355.60 4.8 7.9 11.1 165.1 7.99 13.20 18.60
400 16 406.40 406.40 4.8 7.9 12.7 177.8 10.10 16.70 26.70
450 18 457.20 457.20 4.8 7.9 14.3 203.2 12.90 21.30 41.50
500 20 508.00 508.00 5.5 9.5 15.1 228.6 18.50 31.80 51.30
550 22 558.80 558.80 5.5 9.5 15.9 254.0 22.60 33.80 65.80
600 24 609.60 609.60 6.4 9.5 17.5 266.7 30.10 45.10 84.20
650 26 660.40 660.40 7.9 12.7 17.5 266.7 46.60 74.90 -
700 28 711.20 711.20 7.9 12.7 17.5 267.0 51.60 82.90 -
750 30 762.00 762.00 7.9 12.7 17.5 267.0 56.80 91.30 -
800 32 812.80 812.80 7.9 12.7 17.5 267.0 62.30 100.10 -
850 34 863.60 863.60 7.9 12.7 17.5 267.0 68.00 109.30 -
900 36 914.40 914.40 7.9 12.7 19.1 267.0 78.60 126.30 -
950 38 965.20 965.20 7.9 12.7 19.1 305.0 102.20 153.90 -
1000 40 1016.00 1016.00 7.9 12.7 19.1 305.0 - - -
