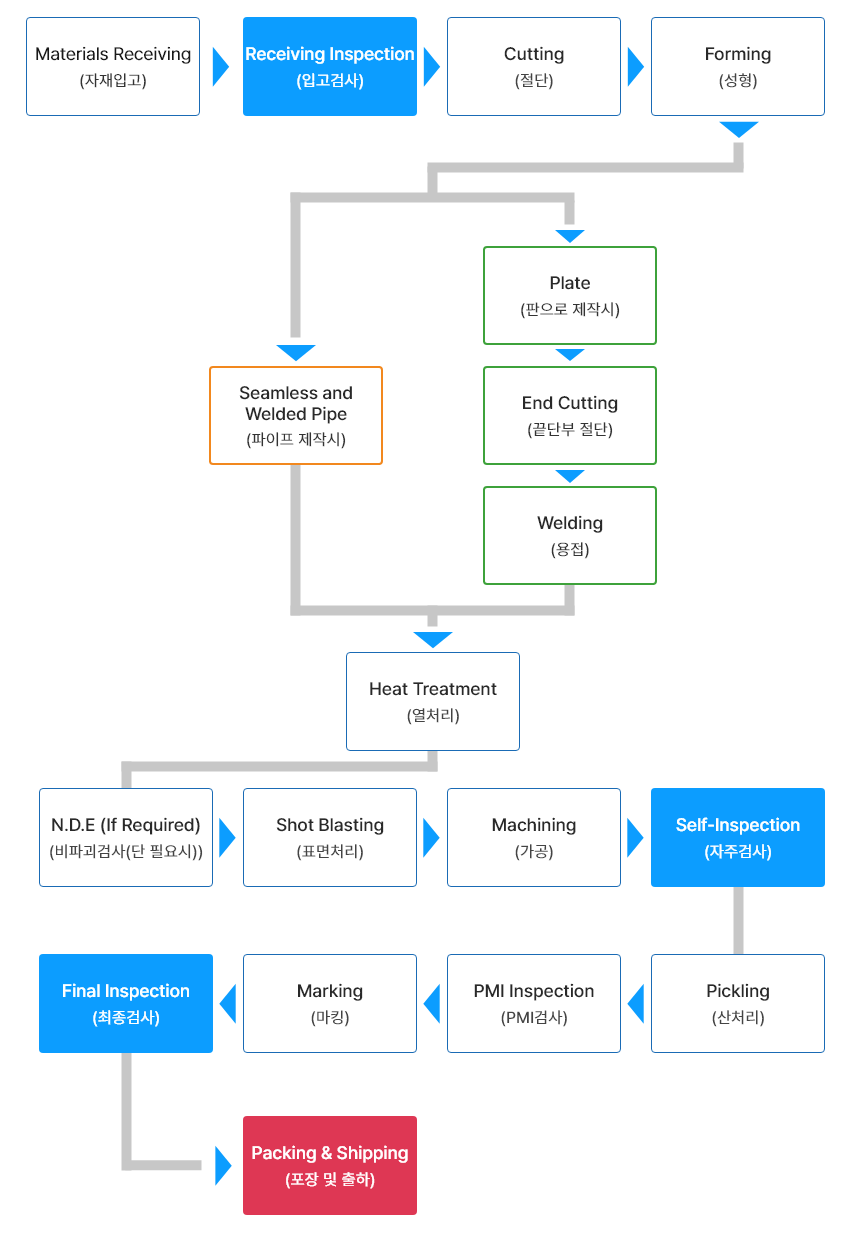

Cap
Standard
- KS B 1541, 1543
- JIS B 2312, 2313
| Nomimal Pipe Size | Outside Diameter(O.D) | Wall Thickness(T) | Center to End | Weight(kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B(in) | KS/JIS | ASME | Sch 10 | Sch 20 | Sch 40 | A | Sch 10 | Sch 20 | Sch 40 |
| 15 | 1/2 | 21.70 | 21.34 | 2.1 | 2.5 | 2.8 | 25.4 | 0.03 | 0.03 | 0.04 |
| 20 | 3/4 | 27.20 | 26.67 | 2.1 | 2.5 | 2.9 | 25.4 | 0.04 | 0.04 | 0.05 |
| 25 | 1 | 34.00 | 33.40 | 2.8 | 3.0 | 3.4 | 38.1 | 0.09 | 0.10 | 0.11 |
| 32 | 1 1/4 | 42.70 | 42.16 | 2.8 | 3.0 | 3.6 | 38.1 | 0.11 | 0.12 | 0.14 |
| 40 | 1 1/2 | 48.60 | 48.26 | 2.8 | 3.0 | 3.7 | 38.1 | 0.13 | 0.14 | 0.17 |
| 50 | 2 | 60.50 | 60.32 | 2.8 | 3.5 | 3.9 | 38.1 | 0.17 | 0.21 | 0.24 |
| 65 | 2 1/2 | 76.30 | 73.02 | 3.0 | 3.5 | 5.2 | 38.1 | 0.23 | 0.28 | 0.42 |
| 80 | 3 | 89.10 | 88.90 | 3.0 | 4.0 | 5.5 | 50.8 | 0.37 | 0.48 | 0.67 |
| 90 | 3 1/2 | 101.60 | 101.60 | 3.0 | 4.0 | 5.5 | 50.8 | 0.37 | 0.48 | 0.67 |
| 100 | 4 | 114.30 | 114.30 | 3.0 | 4.0 | 6.0 | 63.5 | 0.59 | 0.78 | 1.17 |
| 125 | 5 | 139.80 | 141.30 | 3.4 | 5.0 | 6.6 | 76.2 | 0.99 | 1.44 | 1.90 |
| 150 | 6 | 165.20 | 168.30 | 3.4 | 5.0 | 7.1 | 88.9 | 1.39 | 1.99 | 2.83 |
| 200 | 8 | 216.30 | 219.08 | 4.0 | 6.5 | 8.2 | 101.6 | 2.38 | 4.05 | 5.11 |
| 250 | 10 | 267.40 | 273.05 | 4.0 | 6.5 | 9.3 | 127.0 | 4.13 | 6.23 | 8.92 |
| 300 | 12 | 318.50 | 323.80 | 4.5 | 6.5 | 10.3 | 152.4 | 6.39 | 8.89 | 13.10 |
| 350 | 14 | 355.60 | 355.60 | 4.8 | 7.9 | 11.1 | 165.1 | 7.99 | 13.20 | 18.60 |
| 400 | 16 | 406.40 | 406.40 | 4.8 | 7.9 | 12.7 | 177.8 | 10.10 | 16.70 | 26.70 |
| 450 | 18 | 457.20 | 457.20 | 4.8 | 7.9 | 14.3 | 203.2 | 12.90 | 21.30 | 41.50 |
| 500 | 20 | 508.00 | 508.00 | 5.5 | 9.5 | 15.1 | 228.6 | 18.50 | 31.80 | 51.30 |
| 550 | 22 | 558.80 | 558.80 | 5.5 | 9.5 | 15.9 | 254.0 | 22.60 | 33.80 | 65.80 |
| 600 | 24 | 609.60 | 609.60 | 6.4 | 9.5 | 17.5 | 266.7 | 30.10 | 45.10 | 84.20 |
| 650 | 26 | 660.40 | 660.40 | 7.9 | 12.7 | 17.5 | 266.7 | 46.60 | 74.90 | - |
| 700 | 28 | 711.20 | 711.20 | 7.9 | 12.7 | 17.5 | 267.0 | 51.60 | 82.90 | - |
| 750 | 30 | 762.00 | 762.00 | 7.9 | 12.7 | 17.5 | 267.0 | 56.80 | 91.30 | - |
| 800 | 32 | 812.80 | 812.80 | 7.9 | 12.7 | 17.5 | 267.0 | 62.30 | 100.10 | - |
| 850 | 34 | 863.60 | 863.60 | 7.9 | 12.7 | 17.5 | 267.0 | 68.00 | 109.30 | - |
| 900 | 36 | 914.40 | 914.40 | 7.9 | 12.7 | 19.1 | 267.0 | 78.60 | 126.30 | - |
| 950 | 38 | 965.20 | 965.20 | 7.9 | 12.7 | 19.1 | 305.0 | 102.20 | 153.90 | - |
| 1000 | 40 | 1016.00 | 1016.00 | 7.9 | 12.7 | 19.1 | 305.0 | - | - | - |
