- TEE
TEE

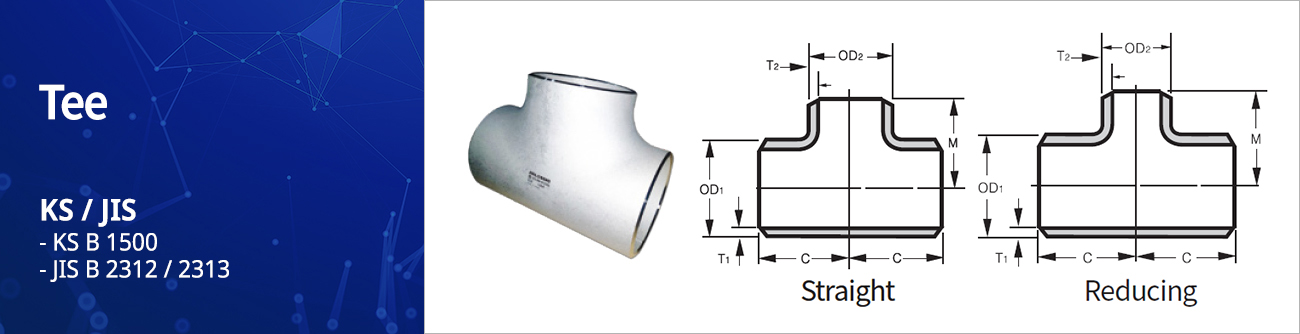

| KS B 1500 , JIS B 2312 / 2313 | UNIT : mm | ||||||||||||||||
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER (O.D) |
WALL THICKNESS(T) | CENTER TO END | WEIGHT(KG) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B(in) | (O.D1) | (O.D2) | SCH 10S | SCH 20S | SCH 40 (KS : S40S) |
SCH 80 (KS : S80S) |
C | M | SCH 10S | SCH 20S | SCH 40 (KS : S40S) |
SCH 80 (KS : S80S) |
||||
| T1 | T2 | T1 | T2 | T1 | T2 | T1 | T2 | ||||||||||
| 15x15 | 1/2x1/2 | 21.70 | 21.70 | 2.1 | 2.1 | 2.5 | 2.5 | 2.8 | 2.8 | 3.7 | 3.7 | 25.4 | 25.4 | 0.07 | 0.08 | 0.09 | 0.11 |
| 20x20 | 3/4x3/4 | 27.20 | 27.20 | 2.1 | 2.1 | 2.5 | 2.5 | 2.9 | 2.9 | 3.9 | 3.9 | 28.6 | 28.6 | 0.09 | 0.11 | 0.13 | 0.16 |
| 20x15 | 3/4x1/2 | 27.20 | 21.70 | 2.1 | 2.1 | 2.5 | 2.5 | 2.9 | 2.8 | 3.9 | 3.7 | 28.6 | 28.6 | 0.09 | 0.11 | 0.12 | 0.15 |
| 25x25 | 1x1 | 34.00 | 34.00 | 2.8 | 2.8 | 3.0 | 3.0 | 3.4 | 3.4 | 4.5 | 4.5 | 38.1 | 38.1 | 0.21 | 0.23 | 0.25 | 0.32 |
| 25X20 | 1x3/4 | 34.00 | 27.20 | 2.8 | 2.1 | 3.0 | 2.5 | 3.4 | 2.9 | 4.5 | 3.9 | 38.1 | 38.1 | 0.19 | 0.21 | 0.23 | 0.30 |
| 25X15 | 1x1/2 | 34.00 | 21.70 | 2.8 | 2.1 | 3.0 | 2.5 | 3.4 | 2.8 | 4.5 | 3.7 | 38.1 | 38.1 | 0.19 | 0.20 | 0.23 | 0.29 |
| 32x32 | 11/4x11/4 | 42.70 | 42.70 | 2.8 | 2.8 | 3.0 | 3.0 | 3.6 | 3.6 | 4.9 | 4.9 | 47.6 | 47.6 | 0.34 | 0.36 | 0.43 | 0.56 |
| 32x25 | 11/4x1 | 42.70 | 34.00 | 2.8 | 2.8 | 3.0 | 3.0 | 3.6 | 3.4 | 4.9 | 4.5 | 47.6 | 47.6 | 0.32 | 0.34 | 0.40 | 0.53 |
| 32x20 | 11/4x3/4 | 42.70 | 27.20 | 2.8 | 2.1 | 3.0 | 2.5 | 3.6 | 2.9 | 4.9 | 3.9 | 47.6 | 47.6 | 0.30 | 0.32 | 0.38 | 0.50 |
| 32x15 | 11/4x1/2 | 42.70 | 21.70 | 2.8 | 2.1 | 3.0 | 2.5 | 3.6 | 2.8 | 4.9 | 3.7 | 47.6 | 47.6 | 0.29 | 0.31 | 0.37 | 0.48 |
| 40x40 | 11/2x11/2 | 48.60 | 48.60 | 2.8 | 2.8 | 3.0 | 3.0 | 3.7 | 3.7 | 5.1 | 5.1 | 57.2 | 57.2 | 0.47 | 0.50 | 0.61 | 0.81 |
| 40x32 | 11/2x11/4 | 48.60 | 42.70 | 2.8 | 2.8 | 3.0 | 3.0 | 3.7 | 3.6 | 5.1 | 4.9 | 57.2 | 57.2 | 0.46 | 0.49 | 0.59 | 0.78 |
| 40x25 | 11/2x1 | 48.60 | 34.00 | 2.8 | 2.8 | 3.0 | 3.0 | 3.7 | 3.4 | 5.1 | 4.5 | 57.2 | 57.2 | 0.44 | 0.47 | 0.56 | 0.74 |
| 40x20 | 11/2x3/4 | 48.60 | 27.20 | 2.8 | 2.1 | 3.0 | 2.5 | 3.7 | 2.9 | 5.1 | 3.9 | 57.2 | 57.2 | 0.41 | 0.44 | 0.53 | 0.71 |
| 40x15 | 11/2x1/2 | 48.60 | 21.70 | 2.8 | 2.1 | 3.0 | 2.5 | 3.7 | 2.8 | 5.1 | 3.7 | 57.2 | 57.2 | 0.40 | 0.43 | 0.52 | 0.69 |
| 50x50 | 2x2 | 60.50 | 60.50 | 2.8 | 2.8 | 3.5 | 3.5 | 3.9 | 3.9 | 5.5 | 5.5 | 63.5 | 63.5 | 0.64 | 0.80 | 0.88 | 1.21 |
| 50x40 | 2x11/2 | 60.50 | 48.60 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.7 | 5.5 | 5.1 | 63.5 | 60.3 | 0.61 | 0.73 | 0.82 | 1.12 |
| 50x32 | 2x11/4 | 60.50 | 42.70 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.6 | 5.5 | 4.9 | 63.5 | 57.2 | 0.59 | 0.71 | 0.79 | 1.08 |
| 50x25 | 2x1 | 60.50 | 34.00 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.4 | 5.5 | 4.5 | 63.5 | 50.8 | 0.56 | 0.68 | 0.75 | 1.03 |
| 50x20 | 2x3/4 | 60.50 | 27.20 | 2.8 | 2.1 | 3.5 | 2.5 | 3.9 | 2.9 | 5.5 | 3.9 | 63.5 | 44.5 | 0.53 | 0.65 | 0.72 | 0.99 |
| 65x65 | 21/2x21/2 | 76.30 | 76.30 | 3.0 | 3.0 | 3.5 | 3.5 | 5.2 | 5.2 | 7.0 | 7.0 | 76.2 | 76.2 | 1.04 | 1.21 | 1.75 | 2.30 |
| 65x50 | 21/2x2 | 76.30 | 60.50 | 3.0 | 2.8 | 3.5 | 3.5 | 5.2 | 3.9 | 7.0 | 5.5 | 76.2 | 69.9 | 0.96 | 1.13 | 1.58 | 2.08 |
| 65x40 | 21/2x11/2 | 76.30 | 48.60 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.7 | 7.0 | 5.1 | 76.2 | 66.7 | 0.93 | 1.06 | 1.52 | 2.00 |
| 65x32 | 21/2x11/4 | 76.30 | 42.70 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.6 | 7.0 | 4.9 | 76.2 | 63.5 | 0.91 | 1.04 | 1.49 | 1.96 |
| 65x25 | 21/2x1 | 76.30 | 34.00 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.4 | 7.0 | 4.5 | 76.2 | 57.2 | 0.88 | 1.01 | 1.45 | 1.90 |
| 80x80 | 3x3 | 89.10 | 89.10 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 5.5 | 7.6 | 7.6 | 85.7 | 85.7 | 1.37 | 1.80 | 2.43 | 3.28 |
| 80x65 | 3x21/2 | 89.10 | 76.30 | 3.0 | 3.0 | 4.0 | 3.5 | 5.5 | 5.2 | 7.6 | 7.0 | 85.7 | 82.6 | 1.31 | 1.70 | 2.31 | 3.10 |
| 80x50 | 3x2 | 89.10 | 60.50 | 3.0 | 2.8 | 4.0 | 3.5 | 5.5 | 3.9 | 7.6 | 5.5 | 85.7 | 76.2 | 1.23 | 1.61 | 2.14 | 2.88 |
| 80x40 | 3x11/2 | 89.10 | 48.60 | 3.0 | 2.8 | 4.0 | 3.0 | 5.5 | 3.7 | 7.6 | 5.1 | 85.7 | 73.0 | 1.19 | 1.55 | 2.08 | 2.80 |
| 80x32 | 3x11/4 | 89.10 | 42.70 | 3.0 | 2.8 | 4.0 | 3.0 | 5.5 | 3.6 | 7.6 | 4.9 | 85.7 | 69.9 | 1.17 | 1.53 | 2.05 | 2.76 |
| 100x100 | 4x4 | 114.30 | 114.30 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 8.6 | 8.6 | 104.8 | 104.8 | 2.14 | 2.83 | 4.16 | 5.83 |
| 100x80 | 4x3 | 114.30 | 89.10 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 5.5 | 8.6 | 7.6 | 104.8 | 98.4 | 2.01 | 2.65 | 3.87 | 5.38 |
| 100x65 | 4x21/2 | 114.30 | 76.30 | 3.0 | 3.0 | 4.0 | 3.5 | 6.0 | 5.2 | 8.6 | 7.0 | 104.8 | 95.3 | 1.95 | 2.55 | 3.74 | 5.21 |
| 100x50 | 4x2 | 114.30 | 60.50 | 3.0 | 2.8 | 4.0 | 3.5 | 6.0 | 3.9 | 8.6 | 5.5 | 104.8 | 88.9 | 1.87 | 2.46 | 3.57 | 4.99 |
| 100x40 | 4x11/2 | 114.30 | 48.60 | 3.0 | 2.8 | 4.0 | 3.0 | 6.0 | 3.7 | 8.6 | 5.1 | 104.8 | 85.7 | 1.83 | 2.40 | 3.51 | 4.90 |
| 125x125 | 5x5 | 139.80 | 139.80 | 3.4 | 3.4 | 5.0 | 5.0 | 6.6 | 6.6 | 9.5 | 9.5 | 123.8 | 123.8 | 3.48 | 5.06 | 6.60 | 9.30 |
| 125x100 | 5x4 | 139.80 | 114.30 | 3.4 | 3.0 | 5.0 | 4.0 | 6.6 | 6.0 | 9.5 | 8.6 | 123.8 | 117.5 | 3.26 | 4.68 | 6.19 | 8.71 |
| 125x80 | 5x3 | 139.80 | 89.10 | 3.4 | 3.0 | 5.0 | 4.0 | 6.6 | 5.5 | 9.5 | 7.6 | 123.8 | 111.1 | 3.13 | 4.51 | 5.89 | 8.27 |
| 125x65 | 5x21/2 | 139.80 | 76.30 | 3.4 | 3.0 | 5.0 | 3.5 | 6.6 | 5.2 | 9.5 | 7.0 | 123.8 | 108.0 | 3.07 | 4.40 | 5.77 | 8.10 |
| 125x50 | 5x2 | 139.80 | 60.50 | 3.4 | 2.8 | 5.0 | 3.5 | 6.6 | 3.9 | 9.5 | 5.5 | 123.8 | 104.8 | 3.00 | 4.33 | 5.61 | 7.90 |
| 150x150 | 6x6 | 165.20 | 165.20 | 3.4 | 3.4 | 5.0 | 5.0 | 7.1 | 7.1 | 11.0 | 11.0 | 142.9 | 142.9 | 4.74 | 6.91 | 9.68 | 14.63 |
| 150x125 | 6x5 | 165.20 | 139.80 | 3.4 | 3.4 | 5.0 | 5.0 | 7.1 | 6.6 | 11.0 | 9.5 | 142.9 | 136.5 | 4.54 | 6.61 | 9.17 | 13.74 |
| 150x100 | 6x4 | 165.20 | 114.30 | 3.4 | 3.0 | 5.0 | 4.0 | 7.1 | 6.0 | 11.0 | 8.6 | 142.9 | 130.2 | 4.31 | 6.23 | 8.76 | 13.16 |
| 150x80 | 6x3 | 165.20 | 89.10 | 3.4 | 3.0 | 5.0 | 4.0 | 7.1 | 5.5 | 11.0 | 7.6 | 142.9 | 123.8 | 4.18 | 6.05 | 8.46 | 12.71 |
| 150x65 | 6x21/2 | 165.20 | 76.30 | 3.4 | 3.0 | 5.0 | 3.5 | 7.1 | 5.2 | 11.0 | 7.0 | 142.9 | 120.7 | 4.13 | 5.95 | 8.34 | 12.54 |
| 200x200 | 8x8 | 216.30 | 216.30 | 4.0 | 4.0 | 6.5 | 6.5 | 8.2 | 8.2 | 12.7 | 12.7 | 177.8 | 177.8 | 9.00 | 14.45 | 18.08 | 27.39 |
| 200x150 | 8x6 | 216.30 | 165.20 | 4.0 | 3.4 | 6.5 | 5.0 | 8.2 | 7.1 | 12.7 | 11.0 | 177.8 | 168.3 | 8.26 | 13.15 | 16.62 | 25.18 |
| 200x125 | 8x5 | 216.30 | 139.80 | 4.0 | 3.4 | 6.5 | 5.0 | 8.2 | 6.6 | 12.7 | 9.5 | 177.8 | 161.9 | 8.14 | 12.98 | 16.29 | 24.56 |
| 200x100 | 8x4 | 216.30 | 114.30 | 4.0 | 3.0 | 6.5 | 4.0 | 8.2 | 6.0 | 12.7 | 8.6 | 177.8 | 155.6 | 7.92 | 12.60 | 15.89 | 23.98 |
| 250x250 | 10x10 | 267.40 | 267.40 | 4.0 | 4.0 | 6.5 | 6.5 | 9.3 | 9.3 | 15.1 | 15.1 | 215.9 | 215.9 | 13.49 | 21.72 | 30.74 | 48.78 |
| 250x200 | 10x8 | 267.40 | 216.30 | 4.0 | 4.0 | 6.5 | 6.5 | 9.3 | 8.2 | 15.1 | 12.7 | 215.9 | 203.2 | 12.80 | 20.60 | 28.78 | 45.46 |
| 250x150 | 10x6 | 267.40 | 165.20 | 4.0 | 3.4 | 6.5 | 5.0 | 9.3 | 7.1 | 15.1 | 11.0 | 215.9 | 193.7 | 12.16 | 19.44 | 27.50 | 43.52 |
| 250x125 | 10x5 | 267.40 | 139.80 | 4.0 | 3.4 | 6.5 | 5.0 | 9.3 | 6.6 | 15.1 | 9.5 | 215.9 | 190.5 | 11.99 | 19.20 | 27.07 | 42.73 |
| 250x100 | 10x4 | 267.40 | 114.30 | 4.0 | 3.0 | 6.5 | 4.0 | 9.3 | 6.0 | 15.1 | 8.6 | 215.9 | 184.2 | 11.75 | 18.80 | 26.64 | 42.13 |
| 300x300 | 12x12 | 318.50 | 318.50 | 4.5 | 4.5 | 6.5 | 6.5 | 10.3 | 10.3 | 17.4 | 17.4 | 254.0 | 254.0 | 21.22 | 30.45 | 47.67 | 78.67 |
| 300x250 | 12x10 | 318.50 | 267.40 | 4.5 | 4.0 | 6.5 | 6.5 | 10.3 | 9.3 | 17.4 | 15.1 | 254.0 | 241.3 | 20.04 | 29.13 | 45.08 | 74.09 |
| 300x200 | 12x8 | 318.50 | 216.30 | 4.5 | 4.0 | 6.5 | 6.5 | 10.3 | 8.2 | 17.4 | 12.7 | 254.0 | 228.6 | 19.35 | 28.02 | 43.12 | 70.77 |
| 300x150 | 12x6 | 318.50 | 165.20 | 4.5 | 3.4 | 6.5 | 5.0 | 10.3 | 7.1 | 17.4 | 11.0 | 254.0 | 219.1 | 18.70 | 26.86 | 41.85 | 68.83 |
| 300x125 | 12x5 | 318.50 | 139.80 | 4.5 | 3.4 | 6.5 | 5.0 | 10.3 | 6.6 | 17.4 | 9.5 | 254.0 | 215.9 | 18.54 | 26.62 | 41.42 | 68.05 |
| 350x350 | 14x14 | 355.60 | 355.60 | 5.0 | 5.0 | 8.0 | 8.0 | 11.1 | 11.1 | 19.0 | 19.0 | 279.4 | 279.4 | 28.84 | 45.75 | 62.91 | 105.22 |
| 350x300 | 14x12 | 355.60 | 318.50 | 5.0 | 4.5 | 8.0 | 6.5 | 11.1 | 10.3 | 19.0 | 17.4 | 279.4 | 269.9 | 27.65 | 43.37 | 60.52 | 101.05 |
| 350x250 | 14x10 | 355.60 | 267.40 | 5.0 | 4.0 | 8.0 | 6.5 | 11.1 | 9.3 | 19.0 | 15.1 | 279.4 | 257.2 | 26.49 | 42.07 | 57.98 | 96.57 |
| 350x200 | 14x8 | 355.60 | 216.30 | 5.0 | 4.0 | 8.0 | 6.5 | 11.1 | 8.2 | 19.0 | 12.7 | 279.4 | 247.7 | 25.88 | 41.09 | 56.21 | 93.54 |
| 350x150 | 14x6 | 355.60 | 165.20 | 5.0 | 3.4 | 8.0 | 5.0 | 11.1 | 7.1 | 19.0 | 11.0 | 279.4 | 238.1 | 25.23 | 39.92 | 54.92 | 91.58 |
| 400x400 | 16x16 | 406.40 | 406.40 | 5.0 | 5.0 | 8.0 | 8.0 | 12.7 | 12.7 | 21.4 | 21.4 | 304.8 | 304.8 | 35.56 | 56.47 | 88.59 | 145.98 |
| 400x350 | 16x14 | 406.40 | 355.60 | 5.0 | 5.0 | 8.0 | 8.0 | 12.7 | 11.1 | 21.4 | 19.0 | 304.8 | 304.8 | 34.92 | 55.44 | 85.61 | 141.31 |
| 400x300 | 16x12 | 406.40 | 318.50 | 5.0 | 4.5 | 8.0 | 6.5 | 12.7 | 10.3 | 21.4 | 17.4 | 304.8 | 295.3 | 33.72 | 53.06 | 83.22 | 137.15 |
| 400x250 | 16x10 | 406.40 | 267.40 | 5.0 | 4.0 | 8.0 | 6.5 | 12.7 | 9.3 | 21.4 | 15.1 | 304.8 | 282.6 | 32.56 | 51.76 | 80.68 | 132.66 |
| 400x200 | 16x8 | 406.40 | 216.30 | 5.0 | 4.0 | 8.0 | 6.5 | 12.7 | 8.2 | 21.4 | 12.7 | 304.8 | 273.1 | 31.96 | 50.78 | 78.91 | 129.63 |
| 400x150 | 16x6 | 406.40 | 165.20 | 5.0 | 3.4 | 8.0 | 5.0 | 12.7 | 7.1 | 21.4 | 11.0 | 304.8 | 263.5 | 31.31 | 49.61 | 77.62 | 127.67 |
| 450x450 | 18x18 | 457.20 | 457.20 | 5.0 | 5.0 | 8.0 | 8.0 | 14.3 | 14.3 | 23.8 | 23.8 | 342.9 | 342.9 | 45.07 | 71.63 | 126.24 | 205.61 |
| 450x400 | 18x16 | 457.20 | 406.40 | 5.0 | 5.0 | 8.0 | 8.0 | 14.3 | 12.7 | 23.8 | 21.4 | 342.9 | 330.2 | 43.71 | 69.47 | 120.87 | 197.09 |
| 450x350 | 18x14 | 457.20 | 355.60 | 5.0 | 5.0 | 8.0 | 8.0 | 14.3 | 11.1 | 23.8 | 19.0 | 342.9 | 330.2 | 43.07 | 68.44 | 117.89 | 192.42 |
| 450x300 | 18x12 | 457.20 | 138.50 | 5.0 | 4.5 | 8.0 | 6.5 | 14.3 | 10.3 | 23.8 | 17.4 | 342.9 | 320.7 | 41.87 | 66.05 | 115.49 | 188.26 |
| 450x250 | 18x10 | 457.20 | 267.40 | 5.0 | 4.0 | 8.0 | 6.5 | 14.3 | 9.3 | 23.8 | 15.1 | 342.9 | 308.0 | 40.71 | 64.75 | 112.96 | 183.77 |
| 450x200 | 18x8 | 457.20 | 216.30 | 5.0 | 4.0 | 8.0 | 6.5 | 14.3 | 8.2 | 23.8 | 12.7 | 342.9 | 298.5 | 40.11 | 63.77 | 111.18 | 180.74 |
| 500x500 | 20x20 | 508.00 | 508.00 | 5.5 | 5.5 | 9.5 | 9.5 | 15.1 | 15.1 | 26.2 | 26.2 | 381.0 | 381.0 | 61.21 | 104.89 | 164.84 | 279.57 |
| 500x450 | 20x18 | 508.00 | 457.20 | 5.5 | 5.0 | 9.5 | 8.0 | 15.1 | 14.3 | 26.2 | 23.8 | 381.0 | 368.3 | 58.90 | 100.14 | 159.33 | 269.01 |
| 500x400 | 20x16 | 508.00 | 406.40 | 5.5 | 5.0 | 9.5 | 8.0 | 15.1 | 12.7 | 26.2 | 21.4 | 381.0 | 355.6 | 57.55 | 97.97 | 153.95 | 260.49 |
| 500x350 | 20x14 | 508.00 | 355.60 | 5.5 | 5.0 | 9.5 | 8.0 | 15.1 | 11.1 | 26.2 | 19.0 | 381.0 | 355.6 | 56.90 | 96.94 | 150.97 | 255.82 |
| 500x300 | 20x12 | 508.00 | 318.50 | 5.5 | 4.5 | 9.5 | 6.5 | 15.1 | 10.3 | 26.2 | 17.4 | 381.0 | 346.1 | 55.71 | 94.56 | 148.58 | 251.66 |
| 500x250 | 20x10 | 508.00 | 267.40 | 5.5 | 4.0 | 9.5 | 6.5 | 15.1 | 9.3 | 26.2 | 15.1 | 381.0 | 333.4 | 54.55 | 93.26 | 146.04 | 247.17 |
| 500x200 | 20x8 | 508.00 | 216.30 | 5.5 | 4.0 | 9.5 | 6.5 | 15.1 | 8.2 | 26.2 | 12.7 | 381.0 | 323.9 | 53.95 | 92.28 | 144.26 | 244.14 |
| 550x550 | 22x22 | 558.80 | 558.80 | 5.5 | 5.5 | 9.5 | 9.5 | 15.9 | 15.9 | 28.6 | 28.6 | 419.1 | 419.1 | 74.14 | 127.13 | 210.30 | 369.42 |
| 550x500 | 22x20 | 558.80 | 508.00 | 5.5 | 5.5 | 9.5 | 9.5 | 15.9 | 15.1 | 28.6 | 26.2 | 419.1 | 406.4 | 72.29 | 123.95 | 203.81 | 356.59 |
| 550x450 | 22x18 | 558.80 | 457.20 | 5.5 | 5.0 | 9.5 | 8.0 | 15.9 | 14.3 | 28.6 | 23.8 | 419.1 | 393.7 | 69.99 | 119.20 | 198.29 | 346.02 |
| 550x400 | 22x16 | 558.80 | 406.40 | 5.5 | 5.0 | 9.5 | 8.0 | 15.9 | 12.7 | 28.6 | 21.4 | 419.1 | 381.0 | 68.63 | 117.04 | 192.91 | 337.50 |
| 600x600 | 24x24 | 609.60 | 609.60 | 6.5 | 6.5 | 9.5 | 9.5 | 17.5 | 17.5 | 31.0 | 31.0 | 431.8 | 431.8 | 96.74 | 140.69 | 255.72 | 442.65 |
| 600x550 | 24x22 | 609.60 | 558.80 | 6.5 | 5.5 | 9.5 | 9.5 | 17.5 | 15.9 | 31.0 | 28.6 | 431.8 | 431.8 | 93.97 | 139.17 | 250.24 | 433.88 |
| 600x500 | 24x20 | 609.60 | 508.00 | 6.5 | 5.5 | 9.5 | 9.5 | 17.5 | 15.1 | 31.0 | 26.2 | 431.8 | 431.8 | 93.09 | 137.64 | 246.48 | 425.84 |
| 600x450 | 24x18 | 609.60 | 457.20 | 6.5 | 5.0 | 9.5 | 8.0 | 17.5 | 14.3 | 31.0 | 23.8 | 431.8 | 419.1 | 90.78 | 132.89 | 240.97 | 415.28 |
| 650x650 | 26x26 | 660.40 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 18.9 | 18.9 | 34.0 | 34.0 | 495.3 | 495.3 | 150.27 | 236.84 | 349.08 | 613.20 |
| 650x600 | 26x24 | 660.40 | 609.60 | 8.0 | 6.5 | 12.7 | 9.5 | 18.9 | 17.5 | 34.0 | 31.0 | 495.3 | 482.6 | 143.69 | 224.65 | 338.56 | 593.70 |
| 650x550 | 26x22 | 660.40 | 558.80 | 8.0 | 5.5 | 12.7 | 9.5 | 18.9 | 15.9 | 34.0 | 28.6 | 495.3 | 469.9 | 139.39 | 221.16 | 329.26 | 578.37 |
| 650x500 | 26x20 | 660.40 | 508.00 | 8.0 | 5.5 | 12.7 | 9.5 | 18.9 | 15.1 | 34.0 | 26.2 | 495.3 | 457.2 | 137.55 | 217.99 | 322.76 | 565.54 |
| 700x700 | 28x28 | 711.20 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 520.7 | 520.7 | 169.09 | 266.64 | 364.89 | - |
| 700x650 | 28x26 | 711.20 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | - | - | - | 520.7 | 520.7 | 167.42 | 263.99 | - | - |
| 700x600 | 28x24 | 711.20 | 609.60 | 8.0 | 6.5 | 12.7 | 9.5 | 17.5 | 17.5 | - | - | 520.7 | 508.0 | 160.84 | 251.80 | 354.30 | - |
| 700x550 | 28x22 | 711.20 | 558.80 | 8.0 | 5.5 | 12.7 | 9.5 | 17.5 | 15.9 | - | - | 520.7 | 495.3 | 156.54 | 248.31 | 345.00 | - |
| 750x750 | 30x30 | 762.00 | 762.00 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 558.8 | 558.8 | 194.67 | 307.11 | 420.47 | - |
| 750x700 | 30x28 | 762.00 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 558.8 | 546.1 | 191.09 | 301.44 | 412.69 | - |
| 750x650 | 30x26 | 762.00 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | - | - | - | 558.8 | 546.1 | 189.41 | 298.79 | - | - |
| 750x600 | 30x24 | 762.00 | 609.60 | 8.0 | 6.5 | 12.7 | 9.5 | 17.5 | 17.5 | - | - | 558.8 | 533.4 | 182.83 | 286.60 | 402.10 | - |
| 800x800 | 32x32 | 812.80 | 812.80 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 596.9 | 596.9 | 222.40 | 350.43 | 479.98 | - |
| 800x750 | 32x30 | 812.80 | 762.00 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 596.9 | 584.2 | 218.20 | 344.36 | 471.64 | - |
| 800x700 | 32x28 | 812.80 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 596.9 | 571.5 | 214.64 | 338.70 | 463.86 | - |
| 800x650 | 32x26 | 812.80 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | - | - | - | 596.9 | 571.5 | 212.95 | 336.04 | - | - |
| 850x850 | 34x34 | 863.60 | 863.60 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 635.0 | 635.0 | 251.22 | 396.62 | 543.43 | - |
| 850x800 | 34x32 | 863.60 | 812.80 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 635.0 | 622.3 | 247.12 | 390.13 | 534.53 | - |
| 850x750 | 34x30 | 863.60 | 762.00 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 635.0 | 609.6 | 243.29 | 384.06 | 526.19 | - |
| 850x700 | 34x28 | 863.60 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 635.0 | 596.9 | 239.70 | 378.40 | 518.41 | - |
| 900x900 | 36x36 | 914.40 | 914.40 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 19.1 | - | - | 673.1 | 673.1 | 282.19 | 445.66 | 665.48 | - |
| 900x850 | 36x34 | 914.40 | 863.60 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 17.5 | - | - | 673.1 | 660.4 | 277.84 | 438.77 | 648.46 | - |
| 900x800 | 36x32 | 914.40 | 812.80 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 17.5 | - | - | 673.1 | 647.7 | 273.75 | 432.29 | 639.56 | - |
| 900x750 | 36x30 | 914.40 | 762.00 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 17.5 | - | - | 673.1 | 635.0 | 269.91 | 426.21 | 631.22 | - |
| 950x950 | 38x38 | 965.20 | 965.20 | - | - | - | - | - | - | - | - | 711.2 | 711.2 | - | - | - | - |
| 950x900 | 38x36 | 965.20 | 914.40 | - | - | - | - | - | - | - | - | 711.2 | 711.2 | - | - | - | - |
| 950x850 | 38x34 | 965.20 | 863.60 | - | - | - | - | - | - | - | - | 711.2 | 698.5 | - | - | - | - |
| 950x800 | 38x32 | 965.20 | 812.80 | - | - | - | - | - | - | - | - | 711.2 | 685.8 | - | - | - | - |
| 1000x1000 | 40x40 | 1016.00 | 1016.00 | 9.5 | 9.5 | 14.3 | 14.3 | - | - | - | - | 749.3 | 749.3 | 414.46 | 620.90 | - | - |
| 1000x950 | 40x38 | 1016.00 | 965.20 | 9.5 | - | 14.3 | - | - | - | - | - | 749.3 | 749.3 | - | - | - | - |
| 1000x900 | 40x36 | 1016.00 | 914.40 | 9.5 | 8.0 | 14.3 | 12.7 | - | - | - | - | 749.3 | 736.6 | 398.28 | 600.01 | - | - |
| 1000x850 | 40x34 | 1016.00 | 863.60 | 9.5 | 8.0 | 14.3 | 12.7 | - | - | - | - | 749.3 | 723.9 | 393.80 | 592.92 | - | - |
| 1050x1050 | 42x42 | 1066.80 | 1066.80 | - | - | - | - | - | - | - | - | 762.0 | 711.2 | - | - | - | - |
| 1050x1000 | 42x40 | 1066.80 | 1016.00 | - | - | - | - | - | - | - | - | 762.0 | 711.2 | - | - | - | - |
| 1050x950 | 42x38 | 1066.80 | 965.2 | - | - | - | - | - | - | - | - | 762.0 | 711.2 | - | - | - | - |
| 1050x900 | 42x36 | 1066.80 | 914.4 | - | - | - | - | - | - | - | - | 762.0 | 711.2 | - | - | - | - |
| 1100x1100 | 44x44 | 1117.60 | 1117.60 | - | - | - | - | - | - | - | - | 812.8 | 762.0 | - | - | - | - |
| 1100x1050 | 44x42 | 1117.60 | 1066.8 | - | - | - | - | - | - | - | - | 812.8 | 762.0 | - | - | - | - |
| 1100x1000 | 44x40 | 1117.60 | 1016.00 | - | - | - | - | - | - | - | - | 812.8 | 749.3 | - | - | - | - |
| 1100x950 | 44x38 | 1117.60 | 965.2 | - | - | - | - | - | - | - | - | 812.8 | 736.6 | - | - | - | - |
| 1150x1150 | 46x46 | 1168.4 | 1168.4 | - | - | - | - | - | - | - | - | 850.9 | 800.1 | - | - | - | - |
| 1150x1100 | 46x44 | 1168.4 | 1117.6 | - | - | - | - | - | - | - | - | 850.9 | 800.1 | - | - | - | - |
| 1150x1050 | 46x42 | 1168.4 | 1066.8 | - | - | - | - | - | - | - | - | 850.9 | 787.4 | - | - | - | - |
| 1150x1000 | 46x40 | 1168.4 | 1016.0 | - | - | - | - | - | - | - | - | 850.9 | 774.7 | - | - | - | - |
| 1200x1200 | 48x48 | 1219.2 | 1219.2 | - | - | - | - | - | - | - | - | 889.0 | 838.2 | - | - | - | - |
| 1200x1150 | 48x46 | 1219.2 | 1168.4 | - | - | - | - | - | - | - | - | 889.0 | 838.2 | - | - | - | - |
| 1200x1100 | 48x44 | 1219.2 | 1117.6 | - | - | - | - | - | - | - | - | 889.0 | 838.2 | - | - | - | - |
| 1200x1050 | 48x42 | 1219.2 | 1066.8 | - | - | - | - | - | - | - | - | 889.0 | 812.8 | - | - | - | - |

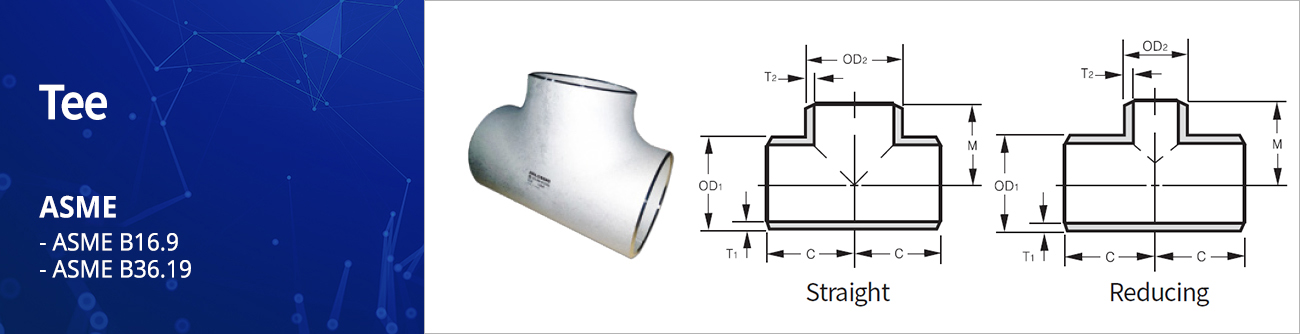

| ASME B16.9, ASME B36.19 | UNIT : mm (Inch=>mm 환산) | |||||||||||||
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER(O.D) |
WALL THICKNESS(T) | CENTER TO END | WEIGHT (KG) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | O.D1 | O.D2 | SCH 10S | SCH 40S | SCH 80S | C | M | SCH 10S | SCH 40S | SCH 80S | |||
| T1 | T2 | T1 | T2 | T1 | T2 | |||||||||
| 1/2 x 1/2 | 15 x 15 | 21.3 | 21.3 | 2.11 | 2.11 | 2.77 | 2.77 | 3.73 | 3.73 | 25.0 | 25.0 | 0.06 | 0.08 | 0.11 |
| 1/2 x 3/8 | 15 x 10 | 21.3 | 17.3 | 2.11 | 1.65 | 2.77 | 2.31 | 3.73 | 3.20 | 25.0 | 25.0 | 0.06 | 0.08 | 0.10 |
| 1/2 x 1/4 | 15 x 8 | 21.3 | 13.7 | 2.11 | 1.65 | 2.77 | 2.24 | 3.73 | 3.02 | 25.0 | 25.0 | 0.06 | 0.07 | 0.09 |
| 3/4 x 3/4 | 20 x 20 | 26.7 | 26.7 | 2.11 | 2.11 | 2.87 | 2.87 | 3.91 | 3.91 | 29.0 | 29.0 | 0.10 | 0.13 | 0.16 |
| 3/4 x 1/2 | 20 x 15 | 26.7 | 21.3 | 2.11 | 2.11 | 2.87 | 2.77 | 3.91 | 3.73 | 29.0 | 29.0 | 0.09 | 0.12 | 0.15 |
| 3/4 x 3/8 | 20 x 10 | 26.7 | 17.3 | 2.11 | 1.65 | 2.87 | 2.31 | 3.91 | 3.20 | 29.0 | 29.0 | 0.09 | 0.11 | 0.15 |
| 1 x 1 | 25 x 25 | 33.4 | 33.4 | 2.77 | 2.77 | 3.38 | 3.38 | 4.55 | 4.55 | 38.0 | 38.0 | 0.21 | 0.25 | 0.32 |
| 1 x 3/4 | 25 x 20 | 33.4 | 26.7 | 2.77 | 2.11 | 3.38 | 2.87 | 4.55 | 3.91 | 38.0 | 38.0 | 0.19 | 0.23 | 0.30 |
| 1 x 1/2 | 25 x 15 | 33.4 | 21.3 | 2.77 | 2.11 | 3.38 | 2.77 | 4.55 | 3.73 | 38.0 | 38.0 | 0.18 | 0.22 | 0.28 |
| 1¼ x 1¼ | 32 x 32 | 42.2 | 42.2 | 2.77 | 2.77 | 3.56 | 3.56 | 4.85 | 4.85 | 48.0 | 48.0 | 0.33 | 0.42 | 0.55 |
| 1¼ x 1 | 32 x 25 | 42.2 | 33.4 | 2.77 | 2.77 | 3.56 | 3.38 | 4.85 | 4.55 | 48.0 | 48.0 | 0.32 | 0.40 | 0.52 |
| 1¼ x 3/4 | 32 x 20 | 42.2 | 26.7 | 2.77 | 2.11 | 3.56 | 2.87 | 4.85 | 3.91 | 48.0 | 48.0 | 0.30 | 0.37 | 0.49 |
| 1¼ x 1/2 | 32 x 15 | 42.2 | 21.3 | 2.77 | 2.11 | 3.56 | 2.77 | 4.85 | 3.73 | 48.0 | 48.0 | 0.29 | 0.36 | 0.48 |
| 1½ x 1½ | 40 x 40 | 48.3 | 48.3 | 2.77 | 2.77 | 3.68 | 3.68 | 5.08 | 5.08 | 57.0 | 57.0 | 0.46 | 0.60 | 0.80 |
| 1½ x 1¼ | 40 x 32 | 48.3 | 42.2 | 2.77 | 2.77 | 3.68 | 3.56 | 5.08 | 4.85 | 57.0 | 57.0 | 0.45 | 0.58 | 0.77 |
| 1½ x 1 | 40 x 25 | 48.3 | 33.4 | 2.77 | 2.77 | 3.68 | 3.38 | 5.08 | 4.55 | 57.0 | 57.0 | 0.43 | 0.55 | 0.73 |
| 1½ x 3/4 | 40 x 20 | 48.3 | 26.7 | 2.77 | 2.11 | 3.68 | 2.87 | 5.08 | 3.91 | 57.0 | 57.0 | 0.40 | 0.52 | 0.70 |
| 1½ x 1/2 | 40 x 15 | 48.3 | 21.3 | 2.77 | 2.11 | 3.68 | 2.77 | 5.08 | 3.73 | 57.0 | 57.0 | 0.39 | 0.51 | 0.68 |
| 2 x 2 | 50 x 50 | 60.3 | 60.3 | 2.77 | 2.77 | 3.91 | 3.91 | 5.54 | 5.54 | 64.0 | 64.0 | 0.64 | 0.89 | 1.22 |
| 2 x 1½ | 50 x 40 | 60.3 | 48.3 | 2.77 | 2.77 | 3.91 | 3.68 | 5.54 | 5.08 | 64.0 | 60.0 | 0.60 | 0.83 | 1.13 |
| 2 x 1¼ | 50 x 32 | 60.3 | 42.2 | 2.77 | 2.77 | 3.91 | 3.56 | 5.54 | 4.85 | 64.0 | 57.0 | 0.58 | 0.80 | 1.09 |
| 2 x 1 | 50 x 25 | 60.3 | 33.4 | 2.77 | 2.77 | 3.91 | 3.38 | 5.54 | 4.55 | 64.0 | 51.0 | 0.55 | 0.76 | 1.04 |
| 2 x 3/4 | 50 x 20 | 60.3 | 26.7 | 2.77 | 2.11 | 3.91 | 2.87 | 5.54 | 3.91 | 64.0 | 44.0 | 0.53 | 0.73 | 1.00 |
| 2½ x 2½ | 65 x 65 | 73.0 | 73.0 | 3.05 | 3.05 | 5.16 | 5.16 | 7.01 | 7.01 | 76.0 | 76.0 | 1.02 | 1.67 | 2.21 |
| 2½ x 2 | 65 x 50 | 73.0 | 60.3 | 3.05 | 2.77 | 5.16 | 3.91 | 7.01 | 5.54 | 76.0 | 70.0 | 0.94 | 1.51 | 2.00 |
| 2½ x 1½ | 65 x 40 | 73.0 | 48.3 | 3.05 | 2.77 | 5.16 | 3.68 | 7.01 | 5.08 | 76.0 | 67.0 | 0.90 | 1.45 | 1.92 |
| 2½ x 1¼ | 65 x 32 | 73.0 | 42.2 | 3.05 | 2.77 | 5.16 | 3.56 | 7.01 | 4.85 | 76.0 | 64.0 | 0.88 | 1.42 | 1.88 |
| 2½ x 1 | 65 x 25 | 73.0 | 33.4 | 3.05 | 2.77 | 5.16 | 3.38 | 7.01 | 4.55 | 76.0 | 57.0 | 0.85 | 1.38 | 1.82 |
| 3 x 3 | 80 x 80 | 88.9 | 88.9 | 3.05 | 3.05 | 5.49 | 5.49 | 7.62 | 7.62 | 86.0 | 86.0 | 1.39 | 2.44 | 3.30 |
| 3 x 2½ | 80 x 65 | 88.9 | 73.0 | 3.05 | 3.05 | 5.49 | 5.16 | 7.62 | 7.01 | 86.0 | 83.0 | 1.33 | 2.30 | 3.10 |
| 3 x 2 | 80 x 50 | 88.9 | 60.3 | 3.05 | 2.77 | 5.49 | 3.91 | 7.62 | 5.54 | 86.0 | 76.0 | 1.25 | 2.14 | 2.89 |
| 3 x 1½ | 80 x 40 | 88.9 | 48.3 | 3.05 | 2.77 | 5.49 | 3.68 | 7.62 | 5.08 | 86.0 | 73.0 | 1.21 | 2.08 | 2.81 |
| 3 x 1¼ | 80 x 32 | 88.9 | 42.2 | 3.05 | 2.77 | 5.49 | 3.56 | 7.62 | 4.85 | 86.0 | 70.0 | 1.19 | 2.05 | 2.77 |
| 3½ x 3½ | 90 x 90 | 101.6 | 101.6 | 3.05 | 3.05 | 5.74 | 5.74 | 8.08 | 8.08 | 95.0 | 95.0 | 1.75 | 3.21 | 4.41 |
| 3½ x 3 | 90 x 80 | 101.6 | 88.9 | 3.05 | 3.05 | 5.74 | 5.49 | 8.08 | 7.62 | 95.0 | 92.0 | 1.69 | 3.07 | 4.21 |
| 3½ x 2½ | 90 x 65 | 101.6 | 73.0 | 3.05 | 3.05 | 5.74 | 5.16 | 8.08 | 7.01 | 95.0 | 89.0 | 1.63 | 2.94 | 4.02 |
| 3½ x 2 | 90 x 50 | 101.6 | 60.3 | 3.05 | 2.77 | 5.74 | 3.91 | 8.08 | 5.54 | 95.0 | 83.0 | 1.55 | 2.78 | 3.82 |
| 3½ x 1½ | 90 x 40 | 101.6 | 48.3 | 3.05 | 2.77 | 5.74 | 3.68 | 8.08 | 5.08 | 95.0 | 79.0 | 1.51 | 2.72 | 3.73 |
| 4 x 4 | 100 x 100 | 114.3 | 114.3 | 3.05 | 3.05 | 6.02 | 6.02 | 8.56 | 8.56 | 105.0 | 105.0 | 2.18 | 4.19 | 5.81 |
| 4 x 3½ | 100 x 90 | 114.3 | 101.6 | 3.05 | 3.05 | 6.02 | 5.74 | 8.56 | 8.08 | 105.0 | 102.0 | 2.11 | 4.03 | 5.58 |
| 4 x 3 | 100 x 80 | 114.3 | 88.9 | 3.05 | 3.05 | 6.02 | 5.49 | 8.56 | 7.62 | 105.0 | 98.0 | 2.04 | 3.88 | 5.37 |
| 4 x 2½ | 100 x 65 | 114.3 | 73.0 | 3.05 | 3.05 | 6.02 | 5.16 | 8.56 | 7.01 | 105.0 | 95.0 | 1.98 | 3.74 | 5.17 |
| 4 x 2 | 100 x 50 | 114.3 | 60.3 | 3.05 | 2.77 | 6.02 | 3.91 | 8.56 | 5.54 | 105.0 | 89.0 | 1.90 | 3.59 | 4.98 |
| 4 x 1½ | 100 x 40 | 114.3 | 48.3 | 3.05 | 2.77 | 6.02 | 3.68 | 8.56 | 5.08 | 105.0 | 86.0 | 1.87 | 3.53 | 4.89 |
| 5 x 5 | 125 x 125 | 141.3 | 141.3 | 3.40 | 3.40 | 6.55 | 6.55 | 9.53 | 9.53 | 124.0 | 124.0 | 3.52 | 6.63 | 9.43 |
| 5 x 4 | 125 x 100 | 141.3 | 114.3 | 3.40 | 3.05 | 6.55 | 6.02 | 9.53 | 8.56 | 125.0 | 117.0 | 3.31 | 6.25 | 8.87 |
| 5 x 3½ | 125 x 90 | 141.3 | 101.6 | 3.40 | 3.05 | 6.55 | 5.74 | 9.53 | 8.08 | 124.0 | 114.0 | 3.22 | 6.05 | 8.57 |
| 5 x 3 | 125 x 80 | 141.3 | 88.9 | 3.40 | 3.05 | 6.55 | 5.49 | 9.53 | 7.62 | 124.0 | 111.0 | 3.16 | 5.91 | 8.38 |
| 5 x 2½ | 125 x 65 | 141.3 | 73.0 | 3.40 | 3.05 | 6.55 | 5.16 | 9.53 | 7.01 | 124.0 | 108.0 | 3.10 | 5.78 | 8.19 |
| 5 x 2 | 125 x 50 | 141.3 | 60.3 | 3.40 | 2.77 | 6.55 | 3.91 | 9.53 | 5.54 | 124.0 | 105.0 | 3.03 | 5.64 | 8.02 |
| 6 x 6 | 150 x 150 | 168.3 | 168.3 | 3.40 | 3.40 | 7.11 | 7.11 | 10.97 | 10.97 | 143.0 | 143.0 | 4.82 | 9.85 | 14.83 |
| 6 x 5 | 150 x 125 | 168.3 | 141.3 | 3.40 | 3.40 | 7.11 | 6.55 | 10.97 | 9.53 | 143.0 | 137.0 | 4.61 | 9.33 | 13.95 |
| 6 x 4 | 150 x 100 | 168.3 | 114.3 | 3.40 | 3.05 | 7.11 | 6.02 | 10.97 | 8.56 | 143.0 | 130.0 | 4.38 | 8.91 | 13.33 |
| 6 x 3½ | 150 x 90 | 168.3 | 101.6 | 3.40 | 3.05 | 7.11 | 5.74 | 10.97 | 8.08 | 143.0 | 127.0 | 4.32 | 8.75 | 13.10 |
| 6 x 3 | 150 x 80 | 168.3 | 88.9 | 3.40 | 3.05 | 7.11 | 5.49 | 10.97 | 7.62 | 143.0 | 124.0 | 4.25 | 8.62 | 12.91 |
| 6 x 2½ | 150 x 65 | 168.3 | 73.0 | 3.40 | 3.05 | 7.11 | 5.16 | 10.97 | 7.01 | 143.0 | 121.0 | 4.19 | 8.49 | 12.72 |
| 8 x 8 | 200 x 200 | 219.1 | 219.1 | 3.76 | 3.76 | 8.18 | 8.18 | 12.70 | 12.70 | 178.0 | 178.0 | 8.56 | 18.24 | 27.72 |
| 8 x 6 | 200 x 150 | 219.1 | 168.3 | 3.76 | 3.40 | 8.18 | 7.11 | 12.70 | 10.97 | 178.0 | 168.0 | 8.00 | 16.97 | 25.76 |
| 8 x 5 | 200 x 125 | 219.1 | 141.3 | 3.76 | 3.40 | 8.18 | 6.55 | 12.70 | 9.53 | 178.0 | 162.0 | 7.79 | 16.46 | 24.89 |
| 8 x 4 | 200 x 100 | 219.1 | 114.3 | 3.76 | 3.05 | 8.18 | 6.02 | 12.70 | 8.56 | 178.0 | 156.0 | 7.57 | 16.06 | 24.30 |
| 8 x 3½ | 200 x 90 | 219.1 | 101.6 | 3.76 | 3.05 | 8.18 | 5.74 | 12.70 | 8.08 | 178.0 | 152.0 | 7.50 | 15.88 | 24.05 |
| 10 x 10 | 250 x 250 | 273.0 | 273.0 | 4.19 | 4.19 | 9.27 | 9.27 | 12.70 | 12.70 | 216.0 | 216.0 | 14.35 | 31.15 | 42.13 |
| 10 x 8 | 250 x 200 | 273.0 | 219.1 | 4.19 | 3.76 | 9.27 | 8.18 | 12.70 | 12.70 | 216.0 | 203.0 | 13.46 | 29.17 | 39.92 |
| 10 x 6 | 250 x 150 | 273.0 | 168.3 | 4.19 | 3.40 | 9.27 | 7.11 | 12.70 | 10.97 | 216.0 | 194.0 | 12.93 | 27.95 | 38.05 |
| 10 x 5 | 250 x 125 | 273.0 | 141.3 | 4.19 | 3.40 | 9.27 | 6.55 | 12.70 | 9.53 | 216.0 | 191.0 | 12.76 | 27.51 | 37.28 |
| 10 x 4 | 250 x 100 | 273.0 | 114.3 | 4.19 | 3.05 | 9.27 | 6.02 | 12.70 | 8.56 | 216.0 | 184.0 | 12.52 | 27.08 | 36.65 |
| 12 x 12 | 300 x 300 | 323.8 | 323.8 | 4.57 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 254.0 | 254.0 | 21.81 | 44.78 | 59.07 |
| 12 x 10 | 300 x 250 | 323.8 | 273.0 | 4.57 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 254.0 | 241.0 | 20.68 | 42.72 | 56.52 |
| 12 x 8 | 300 x 200 | 323.8 | 219.1 | 4.57 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 254.0 | 229.0 | 19.82 | 40.79 | 54.38 |
| 12 x 6 | 300 x 150 | 323.8 | 168.3 | 4.57 | 3.40 | 9.53 | 7.11 | 12.70 | 10.97 | 254.0 | 219.0 | 19.26 | 39.53 | 52.46 |
| 12 x 5 | 300 x 125 | 323.8 | 141.3 | 4.57 | 3.40 | 9.53 | 6.55 | 12.70 | 9.53 | 254.0 | 216.0 | 19.10 | 39.09 | 51.70 |
| 14 x 14 | 350 x 350 | 355.6 | 355.6 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 279.0 | 279.0 | 27.54 | 54.16 | 71.52 |
| 14 x 12 | 350 x 300 | 355.6 | 323.8 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 279.0 | 270.0 | 26.66 | 52.73 | 69.61 |
| 14 x 10 | 350 x 250 | 355.6 | 273.0 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 279.0 | 257.0 | 25.53 | 50.67 | 67.06 |
| 14 x 8 | 350 x 200 | 355.6 | 219.1 | 4.78 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 279.0 | 248.0 | 24.73 | 48.87 | 65.12 |
| 14 x 6 | 350 x 150 | 355.6 | 168.3 | 4.78 | 3.40 | 9.53 | 7.11 | 12.70 | 10.97 | 279.0 | 238.0 | 24.15 | 47.57 | 63.13 |
| 16 x 16 | 400 x 400 | 406.4 | 406.4 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 305.0 | 305.0 | 34.04 | 67.07 | 88.67 |
| 16 x 14 | 400 x 350 | 406.4 | 355.6 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 305.0 | 305.0 | 33.43 | 65.84 | 87.03 |
| 16 x 12 | 400 x 300 | 406.4 | 323.8 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 305.0 | 295.0 | 32.51 | 64.33 | 85.02 |
| 16 x 10 | 400 x 250 | 406.4 | 273.0 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 305.0 | 283.0 | 31.41 | 62.34 | 82.56 |
| 16 x 8 | 400 x 200 | 406.4 | 219.1 | 4.78 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 305.0 | 273.0 | 30.58 | 60.48 | 80.54 |
| 16 x 6 | 400 x 150 | 406.4 | 168.3 | 4.78 | 3.40 | 9.53 | 7.11 | 12.70 | 10.97 | 305.0 | 264.0 | 30.02 | 59.21 | 78.60 |
| 18 x 18 | 450 x 450 | 457.2 | 457.2 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 343.0 | 343.0 | 43.12 | 85.07 | 112.57 |
| 18 x 16 | 450 x 400 | 457.2 | 406.4 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 343.0 | 330.0 | 41.81 | 82.47 | 109.11 |
| 18 x 14 | 450 x 350 | 457.2 | 355.6 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 343.0 | 330.0 | 41.20 | 81.24 | 107.48 |
| 18 x 12 | 450 x 300 | 457.2 | 323.8 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 343.0 | 321.0 | 40.32 | 79.81 | 105.57 |
| 18 x 10 | 450 x 250 | 457.2 | 273.0 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 343.0 | 308.0 | 39.19 | 77.75 | 103.02 |
| 18 x 8 | 450 x 200 | 457.2 | 219.1 | 4.78 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 343.0 | 298.0 | 38.36 | 75.90 | 101.01 |
| 20 x 20 | 500 x 500 | 508.0 | 508.0 | 5.54 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 381.0 | 61.65 | 105.21 | 139.32 |
| 20 x 18 | 500 x 450 | 508.0 | 457.2 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 368.0 | 58.99 | 102.30 | 135.45 |
| 20 x 16 | 500 x 400 | 508.0 | 406.4 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 356.0 | 57.72 | 99.79 | 132.12 |
| 20 x 14 | 500 x 350 | 508.0 | 355.6 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 356.0 | 57.10 | 98.56 | 130.48 |
| 20 x 12 | 500 x 300 | 508.0 | 323.8 | 5.54 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 346.0 | 56.19 | 97.05 | 128.47 |
| 20 x 10 | 500 x 250 | 508.0 | 273.0 | 5.54 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 381.0 | 333.0 | 55.06 | 94.99 | 125.92 |
| 20 x 8 | 500 x 200 | 508.0 | 219.1 | 5.54 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 381.0 | 324.0 | 54.26 | 93.19 | 123.98 |
| 22 x 22 | 550 x 550 | 558.8 | 558.8 | 5.54 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 419.0 | 419.0 | 74.65 | 127.49 | 168.91 |
| 22 x 20 | 550 x 500 | 558.8 | 508.0 | 5.54 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 419.0 | 406.0 | 72.77 | 124.26 | 164.63 |
| 22 x 18 | 550 x 450 | 558.8 | 457.2 | 5.54 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 419.0 | 394.0 | 70.16 | 121.46 | 160.91 |
| 22 x 16 | 550 x 400 | 558.8 | 406.4 | 5.54 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 419.0 | 381.0 | 68.85 | 118.86 | 157.45 |
| 22 x 14 | 550 x 350 | 558.8 | 355.6 | 5.54 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 419.0 | 381.0 | 68.23 | 117.63 | 155.82 |
| 22 x 12 | 550 x 300 | 558.8 | 323.8 | 5.54 | 4.57 | *9.53 | 9.53 | *12.70 | 12.70 | 419.0 | 371.0 | 67.32 | 116.12 | 153.81 |
| 22 x 10 | 550 x 250 | 558.8 | 273.0 | 5.54 | 4.19 | *9.53 | 9.27 | *12.70 | 12.70 | 419.0 | 359.0 | 66.22 | 114.13 | 151.35 |
| 24 x 24 | 600 x 600 | 609.6 | 609.6 | 6.35 | 6.35 | 9.53 | 9.53 | 12.70 | 12.70 | 432.0 | 432.0 | 94.59 | 141.22 | 187.19 |
| 24 x 22 | 600 x 550 | 609.6 | 558.8 | 6.35 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 432.0 | 432.0 | 92.17 | 139.68 | 185.15 |
| 24 x 20 | 600 x 500 | 609.6 | 508.0 | 6.35 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 432.0 | 432.0 | 91.27 | 138.15 | 183.11 |
| 24 x 18 | 600 x 450 | 609.6 | 457.2 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 432.0 | 419.0 | 88.61 | 135.23 | 179.23 |
| 24 x 16 | 600 x 400 | 609.6 | 406.4 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 432.0 | 406.0 | 87.29 | 132.63 | 175.78 |
| 24 x 14 | 600 x 350 | 609.6 | 355.6 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 432.0 | 406.0 | 86.68 | 131.41 | 174.15 |
| 24 x 12 | 600 x 300 | 609.6 | 323.8 | 6.35 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 432.0 | 397.0 | 85.80 | 129.97 | 172.25 |
| 24 x 10 | 600 x 250 | 609.6 | 273.0 | 6.35 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 432.0 | 384.0 | 84.68 | 127.92 | 169.69 |
| 26 x 26 | 650 x 650 | 660.4 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 495.0 | 148.67 | 178.45 | 236.65 |
| 26 x 24 | 650 x 600 | 660.4 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 483.0 | 142.04 | 174.75 | 231.74 |
| 26 x 22 | 650 x 550 | 660.4 | 558.8 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 470.0 | 138.13 | 171.22 | 227.03 |
| 26 x 20 | 650 x 500 | 660.4 | 508.0 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 457.0 | 136.25 | 167.99 | 222.75 |
| 26 x 18 | 650 x 450 | 660.4 | 457.2 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 444.0 | 133.59 | 165.08 | 218.88 |
| 26 x 16 | 650 x 400 | 660.4 | 406.4 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 432.0 | 132.32 | 162.58 | 215.56 |
| 26 x 14 | 650 x 350 | 660.4 | 355.6 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 432.0 | 131.71 | 161.35 | 213.92 |
| 26 x 12 | 650 x 300 | 660.4 | 323.8 | *7.92 | 4.57 | *9.53 | 9.53 | *12.70 | 12.70 | 495.0 | 422.0 | 130.79 | 159.83 | 211.92 |
| 28 x 28 | 700 x 700 | 711.2 | 711.2 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 521.0 | 167.54 | 201.14 | 266.84 |
| 28 x 26 | 700 x 650 | 711.2 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 521.0 | 165.89 | 199.15 | 264.18 |
| 28 x 24 | 700 x 600 | 711.2 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 508.0 | 159.14 | 195.30 | 259.07 |
| 28 x 22 | 700 x 550 | 711.2 | 558.8 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 495.0 | 155.24 | 191.77 | 254.37 |
| 28 x 20 | 700 x 500 | 711.2 | 508.0 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 483.0 | 153.43 | 188.67 | 250.25 |
| 28 x 18 | 700 x 450 | 711.2 | 457.2 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 470.0 | 150.76 | 185.75 | 246.37 |
| 28 x 16 | 700 x 400 | 711.2 | 406.4 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 457.0 | 149.44 | 183.14 | 242.91 |
| 28 x 14 | 700 x 350 | 711.2 | 355.6 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 457.0 | 148.83 | 181.92 | 241.29 |
| 28 x 12 | 700 x 300 | 711.2 | 323.8 | *7.92 | 4.57 | *9.53 | 9.53 | *12.70 | 12.70 | 521.0 | 448.0 | 147.95 | 180.48 | 239.38 |
| 30 x 30 | 750 x 750 | 762.0 | 762.0 | 7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 559.0 | 192.83 | 231.53 | 307.25 |
| 30 x 28 | 750 x 700 | 762.0 | 711.2 | 7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 546.0 | 189.24 | 227.22 | 301.52 |
| 30 x 26 | 750 x 650 | 762.0 | 660.4 | 7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 546.0 | 187.59 | 225.23 | 298.86 |
| 30 x 24 | 750 x 600 | 762.0 | 609.6 | 7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 533.0 | 180.85 | 221.39 | 293.76 |
| 30 x 22 | 750 x 550 | 762.0 | 558.8 | 7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 521.0 | 177.04 | 217.99 | 289.24 |
| 30 x 20 | 750 x 500 | 762.0 | 508.0 | 7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 508.0 | 175.15 | 214.76 | 284.95 |
| 30 x 18 | 750 x 450 | 762.0 | 457.2 | 7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 495.0 | 172.49 | 211.85 | 281.08 |
| 30 x 16 | 750 x 400 | 762.0 | 406.4 | 7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 483.0 | 171.22 | 209.34 | 277.76 |
| 30 x 14 | 750 x 350 | 762.0 | 355.6 | 7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 483.0 | 170.61 | 208.11 | 276.12 |
| 30 x 12 | 750 x 300 | 762.0 | 323.8 | 7.92 | 4.57 | *9.53 | 9.53 | *12.70 | 12.70 | 559.0 | 473.0 | 169.69 | 206.60 | 274.11 |
| 30 x 10 | 750 x 250 | 762.0 | 273.0 | 7.92 | 4.19 | *9.53 | 9.27 | *12.70 | 12.70 | 559.0 | 460.0 | 168.56 | 204.54 | 271.56 |
| 32 x 32 | 800 x 800 | 812.8 | 812.8 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 597.0 | 219.89 | 264.06 | 350.51 |
| 32 x 30 | 800 x 750 | 812.8 | 762.0 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 584.0 | 216.05 | 259.44 | 344.36 |
| 32 x 28 | 800 x 700 | 812.8 | 711.2 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 572.0 | 212.60 | 255.30 | 338.86 |
| 32 x 26 | 800 x 650 | 812.8 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 572.0 | 210.94 | 253.30 | 336.19 |
| 32 x 24 | 800 x 600 | 812.8 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 559.0 | 204.18 | 249.45 | 331.08 |
| 32 x 22 | 800 x 550 | 812.8 | 558.8 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 546.0 | 200.28 | 245.92 | 326.38 |
| 32 x 20 | 800 x 500 | 812.8 | 508.0 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 533.0 | 198.40 | 242.69 | 322.10 |
| 32 x 18 | 800 x 450 | 812.8 | 457.2 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 521.0 | 195.80 | 239.89 | 318.38 |
| 32 x 16 | 800 x 400 | 812.8 | 406.4 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 508.0 | 194.48 | 237.28 | 314.91 |
| 32 x 14 | 800 x 350 | 812.8 | 355.6 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 597.0 | 508.0 | 193.87 | 236.06 | 313.28 |
| 34 x 34 | 850 x 850 | 863.6 | 863.6 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 635.0 | 248.73 | 298.73 | 396.62 |
| 34 x 32 | 850 x 800 | 863.6 | 812.8 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 622.0 | 244.63 | 293.80 | 390.06 |
| 34 x 30 | 850 x 750 | 863.6 | 762.0 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 610.0 | 240.93 | 289.36 | 384.16 |
| 34 x 28 | 850 x 700 | 863.6 | 711.2 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 597.0 | 237.34 | 285.04 | 378.42 |
| 34 x 26 | 850 x 650 | 863.6 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 597.0 | 235.69 | 283.05 | 375.76 |
| 34 x 24 | 850 x 600 | 863.6 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 584.0 | 228.95 | 279.21 | 370.65 |
| 34 x 22 | 850 x 550 | 863.6 | 558.8 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 572.0 | 225.13 | 275.81 | 366.13 |
| 34 x 20 | 850 x 500 | 863.6 | 508.0 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 559.0 | 223.24 | 272.58 | 361.84 |
| 34 x 18 | 850 x 450 | 863.6 | 457.2 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 546.0 | 220.57 | 269.66 | 357.97 |
| 34 x 16 | 850 x 400 | 863.6 | 406.4 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 635.0 | 533.0 | 219.26 | 267.06 | 354.52 |
| 36 x 36 | 900 x 900 | 914.4 | 914.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 673.0 | 279.34 | 335.53 | 445.57 |
| 36 x 34 | 900 x 850 | 914.4 | 863.6 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 660.0 | 274.98 | 330.29 | 438.60 |
| 36 x 32 | 900 x 800 | 914.4 | 812.8 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 648.0 | 271.04 | 325.56 | 432.31 |
| 36 x 30 | 900 x 750 | 914.4 | 762.0 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 635.0 | 267.20 | 320.93 | 426.16 |
| 36 x 28 | 900 x 700 | 914.4 | 711.2 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 622.0 | 263.61 | 316.62 | 420.43 |
| 36 x 26 | 900 x 650 | 914.4 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 622.0 | 261.96 | 314.63 | 417.78 |
| 36 x 24 | 900 x 600 | 914.4 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 610.0 | 255.33 | 310.94 | 412.86 |
| 36 x 22 | 900 x 550 | 914.4 | 558.8 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 597.0 | 251.42 | 307.40 | 408.16 |
| 36 x 20 | 900 x 500 | 914.4 | 508.0 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 584.0 | 249.54 | 304.17 | 403.88 |
| 36 x 18 | 900 x 450 | 914.4 | 457.2 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 572.0 | 246.93 | 301.37 | 400.15 |
| 36 x 16 | 900 x 400 | 914.4 | 406.4 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 673.0 | 559.0 | 245.61 | 298.76 | 396.69 |
| 38 x 38 | 950 x 950 | 965.2 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 711.0 | - | 374.47 | 497.37 |
| 38 x 36 | 950 x 900 | 965.2 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 711.0 | - | 371.71 | 493.70 |
| 38 x 34 | 950 x 850 | 965.2 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 698.0 | - | 366.32 | 486.53 |
| 38 x 32 | 950 x 800 | 965.2 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 686.0 | - | 361.44 | 480.03 |
| 38 x 30 | 950 x 750 | 965.2 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 673.0 | - | 356.66 | 473.68 |
| 38 x 28 | 950 x 700 | 965.2 | 711.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 648.0 | - | 350.20 | 465.10 |
| 38 x 26 | 950 x 650 | 965.2 | 660.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 648.0 | - | 348.21 | 462.44 |
| 38 x 24 | 950 x 600 | 965.2 | 609.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 635.0 | - | 344.36 | 457.32 |
| 38 x 22 | 950 x 550 | 965.2 | 558.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 622.0 | - | 340.83 | 452.63 |
| 38 x 20 | 950 x 500 | 965.2 | 508.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 610.0 | - | 337.72 | 448.51 |
| 38 x 18 | 950 x 450 | 965.2 | 457.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.0 | 597.0 | - | 334.81 | 444.63 |
| 40 x 40 | 1000 x 1000 | 1016.0 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 749.0 | - | 415.55 | 552.03 |
| 40 x 38 | 1000 x 950 | 1016.0 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 749.0 | - | 412.64 | 548.15 |
| 40 x 36 | 1000 x 900 | 1016.0 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 737.0 | - | 407.15 | 540.86 |
| 40 x 34 | 1000 x 850 | 1016.0 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 724.0 | - | 401.76 | 533.68 |
| 40 x 32 | 1000 x 800 | 1016.0 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 711.0 | - | 396.67 | 526.91 |
| 40 x 30 | 1000 x 750 | 1016.0 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 698.0 | - | 391.90 | 520.57 |
| 40 x 28 | 1000 x 700 | 1016.0 | 711.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 673.0 | - | 385.45 | 511.99 |
| 40 x 26 | 1000 x 650 | 1016.0 | 660.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 673.0 | - | 383.46 | 509.34 |
| 40 x 24 | 1000 x 600 | 1016.0 | 609.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 660.0 | - | 379.61 | 504.23 |
| 40 x 22 | 1000 x 550 | 1016.0 | 558.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 648.0 | - | 376.21 | 499.71 |
| 40 x 20 | 1000 x 500 | 1016.0 | 508.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 635.0 | - | 372.99 | 495.43 |
| 40 x 18 | 1000 x 450 | 1016.0 | 457.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 749.0 | 622.0 | - | 370.07 | 491.56 |
| 42 x 42 | 1050 x 1050 | 1066.8 | 1066.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 711.0 | - | 427.13 | 567.50 |
| 42 x 40 | 1050 x 1000 | 1066.8 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 711.0 | - | 424.99 | 564.65 |
| 42 x 38 | 1050 x 950 | 1066.8 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 711.0 | - | 422.85 | 561.80 |
| 42 x 36 | 1050 x 900 | 1066.8 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 711.0 | - | 420.71 | 558.94 |
| 42 x 34 | 1050 x 850 | 1066.8 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 711.0 | - | 418.56 | 556.09 |
| 42 x 32 | 1050 x 800 | 1066.8 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 711.0 | - | 416.42 | 553.23 |
| 42 x 30 | 1050 x 750 | 1066.8 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 711.0 | - | 414.28 | 550.38 |
| 42 x 28 | 1050 x 700 | 1066.8 | 711.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 698.0 | - | 409.97 | 544.65 |
| 42 x 26 | 1050 x 650 | 1066.8 | 660.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 698.0 | - | 407.99 | 542.00 |
| 42 x 24 | 1050 x 600 | 1066.8 | 609.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 660.0 | - | 400.59 | 532.18 |
| 42 x 22 | 1050 x 550 | 1066.8 | 558.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 660.0 | - | 399.06 | 530.15 |
| 42 x 20 | 1050 x 500 | 1066.8 | 508.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 660.0 | - | 397.53 | 528.11 |
| 42 x 18 | 1050 x 450 | 1066.8 | 457.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 648.0 | - | 394.73 | 524.39 |
| 42 x 16 | 1050 x 400 | 1066.8 | 406.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 762.0 | 635.0 | - | 392.12 | 520.93 |
| 44 x 44 | 1100 x 1100 | 1117.6 | 1117.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 762.0 | - | 481.22 | 639.46 |
| 44 x 42 | 1100 x 1050 | 1117.6 | 1066.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 762.0 | - | 478.77 | 636.19 |
| 44 x 40 | 1100 x 1000 | 1117.6 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 749.0 | - | 473.22 | 628.80 |
| 44 x 38 | 1100 x 950 | 1117.6 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 737.0 | - | 468.20 | 622.13 |
| 44 x 36 | 1100 x 900 | 1117.6 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 724.0 | - | 463.26 | 615.56 |
| 44 x 34 | 1100 x 850 | 1117.6 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 724.0 | - | 461.26 | 612.90 |
| 44 x 32 | 1100 x 800 | 1117.6 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 711.0 | - | 456.79 | 606.95 |
| 44 x 30 | 1100 x 750 | 1117.6 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 711.0 | - | 454.96 | 604.51 |
| 44 x 28 | 1100 x 700 | 1117.6 | 711.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 698.0 | - | 450.96 | 599.19 |
| 44 x 26 | 1100 x 650 | 1117.6 | 660.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 698.0 | - | 449.28 | 596.95 |
| 44 x 24 | 1100 x 600 | 1117.6 | 609.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 698.0 | - | 447.60 | 594.71 |
| 44 x 22 | 1100 x 550 | 1117.6 | 558.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 686.0 | - | 444.35 | 590.40 |
| 44 x 20 | 1100 x 500 | 1117.6 | 508.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 813.0 | 686.0 | - | 442.82 | 588.36 |
| 46 x 46 | 1150 x 1150 | 1168.4 | 1168.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 800.0 | - | 527.66 | 701.26 |
| 46 x 44 | 1150 x 1100 | 1168.4 | 1117.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 800.0 | - | 525.06 | 697.79 |
| 46 x 42 | 1150 x 1050 | 1168.4 | 1066.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 787.0 | - | 519.19 | 689.99 |
| 46 x 40 | 1150 x 1000 | 1168.4 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 775.0 | - | 513.88 | 682.92 |
| 46 x 38 | 1150 x 950 | 1168.4 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 762.0 | - | 508.63 | 675.93 |
| 46 x 36 | 1150 x 900 | 1168.4 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 762.0 | - | 506.49 | 673.07 |
| 46 x 34 | 1150 x 850 | 1168.4 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 749.0 | - | 501.71 | 666.72 |
| 46 x 32 | 1150 x 800 | 1168.4 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 749.0 | - | 499.72 | 664.07 |
| 46 x 30 | 1150 x 750 | 1168.4 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 737.0 | - | 495.59 | 658.57 |
| 46 x 28 | 1150 x 700 | 1168.4 | 711.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 737.0 | - | 493.74 | 656.12 |
| 46 x 26 | 1150 x 650 | 1168.4 | 660.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 737.0 | - | 491.90 | 653.66 |
| 46 x 24 | 1150 x 600 | 1168.4 | 609.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 724.0 | - | 488.21 | 648.75 |
| 46 x 22 | 1150 x 550 | 1168.4 | 558.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 851.0 | 724.0 | - | 486.52 | 646.50 |
| 48 x 48 | 1200 x 1200 | 1219.2 | 1219.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 838.0 | - | 576.24 | 765.90 |
| 48 x 46 | 1200 x 1150 | 1219.2 | 1168.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 838.0 | - | 573.49 | 762.23 |
| 48 x 44 | 1200 x 1100 | 1219.2 | 1117.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 838.0 | - | 570.73 | 758.56 |
| 48 x 42 | 1200 x 1050 | 1219.2 | 1066.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 813.0 | - | 561.70 | 746.55 |
| 48 x 40 | 1200 x 1000 | 1219.2 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 813.0 | - | 559.25 | 743.28 |
| 48 x 38 | 1200 x 950 | 1219.2 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 813.0 | - | 556.79 | 740.02 |
| 48 x 36 | 1200 x 900 | 1219.2 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 787.0 | - | 548.75 | 729.33 |
| 48 x 34 | 1200 x 850 | 1219.2 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 787.0 | - | 546.62 | 726.48 |
| 48 x 32 | 1200 x 800 | 1219.2 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 787.0 | - | 544.48 | 723.63 |
| 48 x 30 | 1200 x 750 | 1219.2 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 762.0 | - | 537.87 | 714.85 |
| 48 x 28 | 1200 x 700 | 1219.2 | 711.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 762.0 | - | 536.03 | 712.40 |
| 48 x 26 | 1200 x 650 | 1219.2 | 660.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 762.0 | - | 534.19 | 709.95 |
| 48 x 24 | 1200 x 600 | 1219.2 | 609.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 737.0 | - | 528.79 | 702.78 |
| 48 x 22 | 1200 x 550 | 1219.2 | 558.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 889.0 | 737.0 | - | 527.26 | 700.73 |
Asterisks(*) denote JINILBEND Standards as no internationally Recongnized Standards for these wall thickness have been estabilshed.
