REDUCER

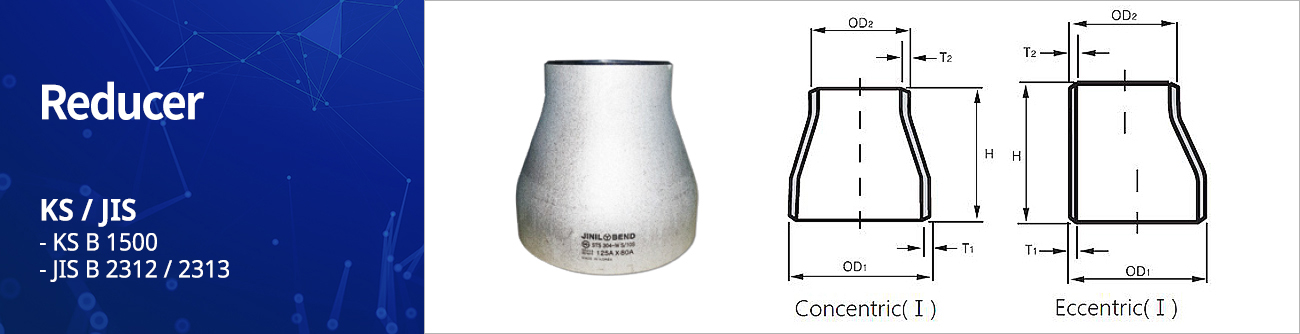

| KS B 1500 , JIS B 2312 / 2313 | UNIT : mm | |||||||||||||||
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER (O.D) |
WALL THICKNESS(T) | END TO END |
WEIGHT(KG) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B(inch) | (O.D1) | (O.D2) | SCH 10S | SCH 20S | SCH 40 (KS : S40S) |
SCH 80 (KS : S80S) |
H | SCH 10S | SCH 20S | SCH 40 (KS : S40S) |
SCH 80 (KS : S80S) |
||||
| T1 | T2 | T1 | T2 | T1 | T2 | T1 | T2 | |||||||||
| 20x15 | 3/4x1/2 | 27.20 | 21.70 | 2.1 | 2.1 | 2.5 | 2.5 | 2.9 | 2.8 | 3.9 | 3.7 | 38.1 | 0.04 | 0.05 | 0.06 | 0.08 |
| 25x20 | 1x3/4 | 34.00 | 27.20 | 2.8 | 2.1 | 3.0 | 2.5 | 3.4 | 2.9 | 4.5 | 3.7 | 50.8 | 0.10 | 0.10 | 0.12 | 0.15 |
| 25x15 | 1x1/2 | 34.00 | 21.70 | 2.8 | 2.1 | 3.0 | 2.5 | 3.4 | 2.8 | 4.5 | 3.7 | 50.8 | 0.09 | 0.09 | 0.11 | 0.13 |
| 32x25 | 11/4x1 | 42.70 | 34.00 | 2.8 | 2.8 | 3.0 | 3.0 | 3.6 | 3.4 | 4.9 | 4.5 | 50.8 | 0.13 | 0.13 | 0.16 | 0.21 |
| 32x20 | 11/4x3/4 | 42.70 | 27.20 | 2.8 | 2.1 | 3.0 | 2.5 | 3.6 | 2.9 | 4.9 | 3.9 | 50.8 | 0.11 | 0.12 | 0.14 | 0.19 |
| 32x15 | 11/4x1/2 | 42.70 | 21.70 | 2.8 | 2.1 | 3.0 | 2.5 | 3.6 | 2.8 | 4.9 | 3.7 | 50.8 | 0.10 | 0.11 | 0.13 | 0.17 |
| 40x32 | 11/2x11/4 | 48.60 | 42.70 | 2.8 | 2.8 | 3.0 | 3.0 | 3.7 | 3.6 | 5.1 | 4.9 | 63.5 | 0.19 | 0.20 | 0.25 | 0.33 |
| 40x25 | 11/2x1 | 48.60 | 34.00 | 2.8 | 2.8 | 3.0 | 3.0 | 3.7 | 3.4 | 5.1 | 4.5 | 63.5 | 0.17 | 0.18 | 0.22 | 0.29 |
| 40x20 | 11/2x3/4 | 48.60 | 27.20 | 2.8 | 2.1 | 3.0 | 2.5 | 3.7 | 2.9 | 5.1 | 3.9 | 63.5 | 0.16 | 0.17 | 0.20 | 0.26 |
| 40x15 | 11/2x1/2 | 48.60 | 21.70 | 2.8 | 2.1 | 3.0 | 2.5 | 3.7 | 2.8 | 5.1 | 3.7 | 63.5 | 0.14 | 0.15 | 0.18 | 0.24 |
| 50x40 | 2x11/2 | 60.50 | 48.60 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.7 | 5.5 | 5.1 | 76.2 | 0.28 | 0.34 | 0.37 | 0.51 |
| 50x32 | 2x11/4 | 60.50 | 42.70 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.6 | 5.5 | 4.9 | 76.2 | 0.26 | 0.32 | 0.35 | 0.48 |
| 50x25 | 2x1 | 60.50 | 34.00 | 2.8 | 2.8 | 3.5 | 3.0 | 3.9 | 3.4 | 5.5 | 4.5 | 76.2 | 0.24 | 0.29 | 0.32 | 0.44 |
| 50x20 | 2x3/4 | 60.50 | 27.20 | 2.8 | 2.1 | 3.5 | 2.5 | 3.9 | 2.9 | 5.5 | 3.9 | 76.2 | 0.22 | 0.27 | 0.30 | 0.40 |
| 65x50 | 21/2x2 | 76.30 | 60.50 | 3.0 | 2.8 | 3.5 | 3.5 | 5.2 | 3.9 | 7.0 | 5.5 | 88.9 | 0.43 | 0.50 | 0.73 | 0.95 |
| 65x40 | 21/2x11/2 | 76.30 | 48.60 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.7 | 7.0 | 5.1 | 88.9 | 0.40 | 0.46 | 0.66 | 0.86 |
| 65x32 | 21/2x11/4 | 76.30 | 42.70 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.6 | 7.0 | 4.9 | 88.9 | 0.38 | 0.43 | 0.63 | 0.81 |
| 65x25 | 21/2x1 | 76.30 | 34.00 | 3.0 | 2.8 | 3.5 | 3.0 | 5.2 | 3.4 | 7.0 | 4.5 | 88.9 | 0.35 | 0.40 | 0.58 | 0.75 |
| 80x65 | 3x21/2 | 89.10 | 76.30 | 3.0 | 3.0 | 4.0 | 3.5 | 5.5 | 5.2 | 7.6 | 7.0 | 88.9 | 0.53 | 0.70 | 0.94 | 1.26 |
| 80x50 | 3x2 | 89.10 | 60.50 | 3.0 | 2.8 | 4.0 | 3.5 | 5.5 | 3.9 | 7.6 | 5.5 | 88.9 | 0.48 | 0.63 | 0.84 | 1.13 |
| 80x40 | 3x11/2 | 89.10 | 48.60 | 3.0 | 2.8 | 4.0 | 3.0 | 5.5 | 3.7 | 7.6 | 5.1 | 88.9 | 0.44 | 0.57 | 0.77 | 1.03 |
| 80x32 | 3x11/4 | 89.10 | 42.70 | 3.0 | 2.8 | 4.0 | 3.0 | 5.5 | 3.6 | 7.6 | 4.9 | 88.9 | 0.42 | 0.55 | 0.74 | 0.98 |
| 100x80 | 4x3 | 114.30 | 89.10 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 5.5 | 8.6 | 7.6 | 101.6 | 0.75 | 0.99 | 1.45 | 2.03 |
| 100x65 | 4x21/2 | 114.30 | 76.30 | 3.0 | 3.0 | 4.0 | 3.5 | 6.0 | 5.2 | 8.6 | 7.0 | 101.6 | 0.70 | 0.92 | 1.36 | 1.89 |
| 100x50 | 4x2 | 114.30 | 60.50 | 3.0 | 2.8 | 4.0 | 3.5 | 6.0 | 3.9 | 8.6 | 5.5 | 101.6 | 0.64 | 0.84 | 1.24 | 1.72 |
| 100x40 | 4x11/2 | 114.30 | 48.60 | 3.0 | 2.8 | 4.0 | 3.0 | 6.0 | 3.7 | 8.6 | 5.1 | 101.6 | 0.60 | 0.78 | 1.15 | 1.59 |
| 125x100 | 5x4 | 139.80 | 114.30 | 3.4 | 3.0 | 5.0 | 4.0 | 6.6 | 6.0 | 9.5 | 8.6 | 127.0 | 1.33 | 1.93 | 2.52 | 3.53 |
| 125x80 | 5x3 | 139.80 | 89.10 | 3.4 | 3.0 | 5.0 | 4.0 | 6.6 | 5.5 | 9.5 | 7.6 | 127.0 | 1.19 | 1.72 | 2.25 | 3.15 |
| 125x65 | 5x2 1/2 | 139.80 | 76.30 | 3.4 | 3.0 | 5.0 | 3.5 | 6.6 | 5.2 | 9.5 | 7.0 | 127.0 | 1.13 | 1.63 | 2.12 | 2.96 |
| 125x50 | 5x2 | 139.80 | 60.50 | 3.4 | 2.8 | 5.0 | 3.5 | 6.6 | 3.9 | 9.5 | 5.5 | 127.0 | 1.04 | 1.51 | 1.95 | 2.72 |
| 150x125 | 6x5 | 165.20 | 139.80 | 3.4 | 3.4 | 5.0 | 5.0 | 7.1 | 6.6 | 11.0 | 9.5 | 139.7 | 1.76 | 2.57 | 3.59 | 5.42 |
| 150x100 | 6x4 | 165.20 | 114.30 | 3.4 | 3.0 | 5.0 | 4.0 | 7.1 | 6.0 | 11.0 | 8.6 | 139.7 | 1.61 | 2.34 | 3.28 | 4.93 |
| 150x80 | 6x3 | 165.20 | 89.10 | 3.4 | 3.0 | 5.0 | 4.0 | 7.1 | 5.5 | 11.0 | 7.6 | 139.7 | 1.46 | 2.13 | 2.94 | 4.45 |
| 150x65 | 6x2 1/2 | 165.20 | 76.30 | 3.4 | 3.0 | 5.0 | 3.5 | 7.1 | 5.2 | 11.0 | 7.0 | 139.7 | 1.39 | 2.01 | 2.81 | 4.20 |
| 200x150 | 8x6 | 216.30 | 165.20 | 4.0 | 3.4 | 6.5 | 5.0 | 8.2 | 7.1 | 12.7 | 11.0 | 152.4 | 2.84 | 4.55 | 5.68 | 8.59 |
| 200x125 | 8x5 | 216.30 | 139.80 | 4.0 | 3.4 | 6.5 | 5.0 | 8.2 | 6.6 | 12.7 | 9.5 | 152.4 | 2.64 | 4.23 | 5.29 | 7.97 |
| 200x100 | 8x4 | 216.30 | 114.30 | 4.0 | 3.0 | 6.5 | 4.0 | 8.2 | 6.0 | 12.7 | 8.6 | 152.4 | 2.45 | 3.92 | 4.89 | 7.36 |
| 250x200 | 10x8 | 267.40 | 216.30 | 4.0 | 4.0 | 6.5 | 6.5 | 9.3 | 8.2 | 15.1 | 12.7 | 177.8 | 4.21 | 6.78 | 9.58 | 15.17 |
| 250x150 | 10x6 | 267.40 | 165.20 | 4.0 | 3.4 | 6.5 | 5.0 | 9.3 | 7.1 | 15.1 | 11.0 | 177.8 | 3.76 | 6.04 | 8.53 | 13.46 |
| 250x125 | 10x5 | 267.40 | 139.80 | 4.0 | 3.4 | 6.5 | 5.0 | 9.3 | 6.6 | 15.1 | 9.5 | 177.8 | 3.54 | 5.67 | 8.00 | 12.61 |
| 250x100 | 10x4 | 267.40 | 114.30 | 4.0 | 3.0 | 6.5 | 4.0 | 9.3 | 6.0 | 15.1 | 8.6 | 177.8 | 3.31 | 5.31 | 7.48 | 11.76 |
| 300x250 | 12x10 | 318.50 | 267.40 | 4.5 | 4.0 | 6.5 | 6.5 | 10.3 | 9.3 | 17.4 | 15.1 | 203.2 | 6.57 | 9.43 | 14.74 | 24.27 |
| 300x200 | 12x8 | 318.50 | 216.30 | 4.5 | 4.0 | 6.5 | 6.5 | 10.3 | 8.2 | 17.4 | 12.7 | 203.2 | 5.99 | 8.58 | 13.41 | 22.02 |
| 300x150 | 12x6 | 318.50 | 165.20 | 4.5 | 3.4 | 6.5 | 5.0 | 10.3 | 7.1 | 17.4 | 11.0 | 203.2 | 5.41 | 7.74 | 12.07 | 19.77 |
| 300x125 | 12x5 | 318.50 | 139.80 | 4.5 | 3.4 | 6.5 | 5.0 | 10.3 | 6.6 | 17.4 | 9.5 | 203.2 | 5.12 | 7.33 | 11.41 | 18.65 |
| 350x300 | 14x12 | 355.60 | 318.50 | 5.0 | 4.5 | 8.0 | 6.5 | 11.1 | 10.3 | 19.0 | 17.4 | 330.2 | 13.66 | 21.65 | 29.76 | 49.71 |
| 350x250 | 14x10 | 355.60 | 267.40 | 5.0 | 4.0 | 8.0 | 6.5 | 11.1 | 9.3 | 19.0 | 15.1 | 330.2 | 12.61 | 19.97 | 27.43 | 45.72 |
| 350x200 | 14x8 | 355.60 | 216.30 | 5.0 | 4.0 | 8.0 | 6.5 | 11.1 | 8.2 | 19.0 | 12.7 | 330.2 | 11.56 | 18.29 | 25.10 | 41.72 |
| 350x150 | 14x6 | 355.60 | 165.20 | 5.0 | 3.4 | 8.0 | 5.0 | 11.1 | 7.1 | 19.0 | 11.0 | 330.2 | 10.50 | 16.61 | 22.76 | 37.73 |
| 400x350 | 16x14 | 406.40 | 355.60 | 5.0 | 5.0 | 8.0 | 8.0 | 12.7 | 11.1 | 21.4 | 19.0 | 355.6 | 16.65 | 26.44 | 41.44 | 68.17 |
| 400x300 | 16x12 | 406.40 | 318.50 | 5.0 | 4.5 | 8.0 | 6.5 | 12.7 | 10.3 | 21.4 | 17.4 | 355.6 | 15.83 | 25.12 | 39.35 | 64.66 |
| 400x250 | 16x10 | 406.40 | 267.40 | 5.0 | 4.0 | 8.0 | 6.5 | 12.7 | 9.3 | 21.4 | 15.1 | 355.6 | 14.70 | 23.31 | 36.48 | 359.81 |
| 400x200 | 16x8 | 406.40 | 216.30 | 5.0 | 4.0 | 8.0 | 6.5 | 12.7 | 8.2 | 21.4 | 12.7 | 355.6 | 13.57 | 21.50 | 33.60 | 54.97 |
| 450x400 | 18x16 | 457.20 | 406.40 | 5.0 | 5.0 | 8.0 | 8.0 | 14.3 | 12.7 | 23.8 | 21.4 | 381.0 | 20.26 | 32.18 | 56.67 | 92.17 |
| 450x350 | 18x14 | 457.20 | 355.60 | 5.0 | 5.0 | 8.0 | 8.0 | 14.3 | 11.1 | 23.8 | 19.0 | 381.0 | 19.05 | 30.25 | 53.22 | 86.43 |
| 450x300 | 18x12 | 457.20 | 318.50 | 5.0 | 4.5 | 8.0 | 6.5 | 14.3 | 10.3 | 23.8 | 17.4 | 381.0 | 18.17 | 28.84 | 50.70 | 82.74 |
| 450x250 | 18x10 | 457.20 | 267.40 | 5.0 | 4.0 | 8.0 | 6.5 | 14.3 | 9.3 | 23.8 | 15.1 | 381.0 | 16.96 | 26.90 | 47.23 | 76.47 |
| 500x450 | 20x18 | 508.00 | 457.20 | 5.5 | 5.0 | 9.5 | 8.0 | 15.1 | 14.3 | 26.2 | 23.8 | 508.0 | 33.21 | 56.88 | 89.34 | 151.33 |
| 500x400 | 20x16 | 508.00 | 406.40 | 5.5 | 5.0 | 9.5 | 8.0 | 15.1 | 12.7 | 26.2 | 21.4 | 508.0 | 31.44 | 53.83 | 84.49 | 142.91 |
| 500x350 | 20x14 | 508.00 | 355.60 | 5.5 | 5.0 | 9.5 | 8.0 | 15.1 | 11.1 | 26.2 | 19.0 | 508.0 | 29.67 | 50.77 | 79.63 | 134.49 |
| 500x300 | 20x12 | 508.00 | 318.50 | 5.5 | 4.5 | 9.5 | 6.5 | 15.1 | 10.3 | 26.2 | 17.4 | 508.0 | 28.38 | 48.54 | 76.09 | 128.34 |
| 550x500 | 22x20 | 558.80 | 508.80 | 5.5 | 5.5 | 9.5 | 9.5 | 15.9 | 15.1 | 28.6 | 26.2 | 508.0 | 36.75 | 62.99 | 104.13 | 182.71 |
| 550x450 | 22x18 | 558.80 | 457.20 | 5.5 | 5.0 | 9.5 | 8.0 | 15.9 | 14.3 | 28.6 | 23.8 | 508.0 | 34.98 | 59.93 | 99.02 | 173.52 |
| 550x400 | 22x16 | 558.80 | 406.40 | 5.5 | 5.0 | 9.5 | 8.0 | 15.9 | 12.7 | 28.6 | 21.4 | 508.0 | 33.21 | 56.88 | 93.91 | 164.33 |
| 550x350 | 22x14 | 558.80 | 355.60 | 5.5 | 5.0 | 9.5 | 8.0 | 15.9 | 11.1 | 28.6 | 19.0 | 508.0 | 31.44 | 53.83 | 88.80 | 155.13 |
| 600x550 | 24x22 | 609.60 | 558.80 | 6.5 | 5.5 | 9.5 | 9.5 | 17.5 | 15.9 | 31.0 | 28.6 | 508.0 | 47.52 | 69.10 | 125.51 | 217.04 |
| 600x500 | 24x20 | 609.60 | 508.00 | 6.5 | 5.5 | 9.5 | 9.5 | 17.5 | 15.1 | 31.0 | 26.2 | 508.0 | 45.43 | 66.04 | 119.88 | 207.07 |
| 600x450 | 24x18 | 609.60 | 457.20 | 6.5 | 5.0 | 9.5 | 8.0 | 17.5 | 14.3 | 31.0 | 23.8 | 508.0 | 43.34 | 62.99 | 114.26 | 197.11 |
| 600x400 | 24x16 | 609.60 | 406.40 | 6.5 | 5.0 | 9.5 | 8.0 | 17.5 | 12.7 | 31.0 | 21.4 | 508.0 | 41.25 | 59.93 | 108.63 | 187.14 |
| 650x600 | 26x24 | 660.40 | 609.60 | 8.0 | 6.5 | 12.7 | 9.5 | 18.9 | 17.5 | 34.0 | 31.0 | 609.6 | 76.18 | 120.02 | 176.84 | 310.33 |
| 650x550 | 26x22 | 660.40 | 558.80 | 8.0 | 5.5 | 12.7 | 9.5 | 18.9 | 15.9 | 34.0 | 28.6 | 609.6 | 73.09 | 115.13 | 169.55 | 297.21 |
| 650x500 | 26x20 | 660.40 | 508.00 | 8.0 | 5.5 | 12.7 | 9.5 | 18.9 | 15.1 | 34.0 | 26.2 | 609.6 | 70.01 | 110.23 | 162.26 | 284.10 |
| 650x450 | 26x18 | 660.40 | 457.20 | 8.0 | 5.0 | 12.7 | 8.0 | 18.9 | 14.3 | 34.0 | 23.8 | 609.6 | 66.92 | 105.33 | 154.97 | 270.98 |
| 700x650 | 28x26 | 711.20 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | - | - | - | 609.6 | 82.35 | 129.82 | - | - |
| 700x600 | 28x24 | 711.20 | 609.60 | 8.0 | 6.5 | 12.7 | 9.5 | 17.5 | 17.5 | - | - | 609.6 | 79.26 | 124.92 | 170.86 | - |
| 700x550 | 28x22 | 711.20 | 558.80 | 8.0 | 5.5 | 12.7 | 9.5 | 17.5 | 15.9 | - | - | 609.6 | 76.18 | 120.02 | 164.11 | - |
| 700x500 | 28x20 | 711.20 | 508.00 | 8.0 | 5.5 | 12.7 | 9.5 | 17.5 | 15.1 | - | - | 609.6 | 73.09 | 115.13 | 157.36 | - |
| 750x700 | 30x28 | 762.00 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 609.6 | 88.52 | 139.62 | 191.12 | - |
| 750x650 | 30x26 | 762.00 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | - | - | - | 609.6 | 85.44 | 134.72 | - | - |
| 750x600 | 30x24 | 762.00 | 609.60 | 8.0 | 6.5 | 12.7 | 9.5 | 17.5 | 17.5 | - | - | 609.6 | 82.35 | 129.82 | 177.61 | - |
| 750x550 | 30x22 | 762.00 | 558.80 | 8.0 | 5.5 | 12.7 | 9.5 | 17.5 | 15.9 | - | - | 609.6 | 79.26 | 124.92 | 170.86 | - |
| 800x750 | 32x30 | 812.80 | 762.00 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 609.6 | 94.69 | 149.42 | 204.62 | - |
| 800x700 | 32x28 | 812.80 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 609.6 | 91.61 | 144.52 | 197.87 | - |
| 800x650 | 32x26 | 812.80 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | - | - | - | 609.6 | 88.52 | 139.62 | - | - |
| 800x600 | 32x24 | 812.80 | 609.60 | 8.0 | 6.5 | 12.7 | 9.5 | 17.5 | 17.5 | - | - | 609.6 | 85.44 | 134.72 | 184.40 | - |
| 850x800 | 34x32 | 863.60 | 812.80 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 609.6 | 100.87 | 159.22 | 218.12 | - |
| 850x750 | 34x30 | 863.60 | 762.00 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 609.6 | 97.78 | 154.32 | 211.37 | - |
| 850x700 | 34x28 | 863.60 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | 17.5 | - | - | 609.6 | 94.69 | 149.42 | 204.62 | - |
| 850x650 | 34x26 | 863.60 | 660.40 | 8.0 | 8.0 | 12.7 | 12.7 | 17.5 | - | - | - | 609.6 | 91.61 | 144.52 | - | - |
| 900x850 | 36x34 | 914.40 | 863.60 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 17.5 | - | - | 609.6 | 107.04 | 169.01 | 252.23 | - |
| 900x800 | 36x32 | 914.40 | 812.80 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 17.5 | - | - | 609.6 | 103.95 | 164.12 | 244.96 | - |
| 900x750 | 36x30 | 914.40 | 762.00 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 17.5 | - | - | 609.6 | 100.87 | 159.22 | 237.60 | - |
| 900x700 | 36x28 | 914.40 | 711.20 | 8.0 | 8.0 | 12.7 | 12.7 | 19.1 | 17.5 | - | - | 609.6 | 97.78 | 154.32 | 230.23 | - |
| 950x900 | 38x36 | 965.20 | 914.40 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 950x850 | 38x34 | 965.20 | 863.60 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 950x800 | 38x32 | 965.20 | 812.80 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 950x750 | 38x30 | 965.20 | 762.00 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1000x950 | 40x38 | 1016.00 | 965.20 | 9.5 | - | 14.3 | - | - | - | - | - | 609.6 | 141.55 | 212.03 | - | - |
| 1000x900 | 40x36 | 1016.00 | 914.40 | 9.5 | 8.0 | 14.3 | 12.7 | - | - | - | - | 609.6 | 137.88 | 206.51 | - | - |
| 1000x850 | 40x34 | 1016.00 | 863.60 | 9.5 | 8.0 | 14.3 | 12.7 | - | - | - | - | 609.6 | 134.22 | 200.99 | - | - |
| 1000x800 | 40x32 | 1016.00 | 812.80 | 9.5 | 8.0 | 14.3 | 12.7 | - | - | - | - | 609.6 | 130.55 | 195.48 | - | - |
| 1050x1000 | 42x40 | 1066.80 | 1016.00 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1050x950 | 42x38 | 1066.80 | 965.20 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1050x900 | 42x36 | 1066.80 | 914.40 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1050x850 | 42x34 | 1066.80 | 863.60 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1100x1050 | 44x42 | 1117.60 | 1066.80 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1100x1000 | 44x40 | 1117.60 | 1016.00 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1100x950 | 44x38 | 1117.60 | 965.20 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1100x900 | 44x36 | 1117.60 | 914.40 | - | - | - | - | - | - | - | - | 609.6 | - | - | - | - |
| 1150x1100 | 46x44 | 1168.40 | 1117.60 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |
| 1150x1050 | 46x42 | 1168.40 | 1066.80 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |
| 1150x1000 | 46x40 | 1168.40 | 1016.00 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |
| 1150x950 | 46x38 | 1168.40 | 965.20 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |
| 1200x1050 | 48x46 | 1219.20 | 1168.40 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |
| 1200x1100 | 48x44 | 1219.20 | 1117.60 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |
| 1200x1050 | 48x42 | 1219.20 | 1066.80 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |
| 1200x1000 | 48x40 | 1219.20 | 1016.00 | - | - | - | - | - | - | - | - | 711.2 | - | - | - | - |

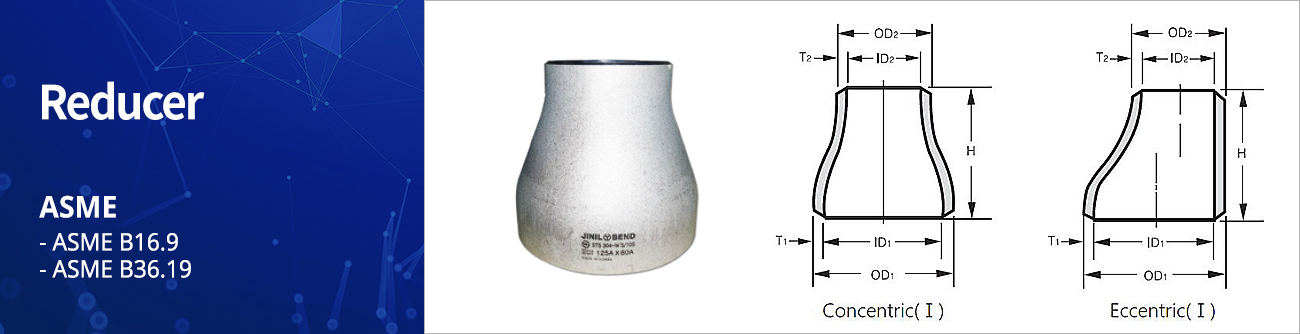

| ASME B16.9, ASME B36.19 | UNIT : mm (Inch=>mm 환산) | ||||||||||||
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER(O.D) |
WALL THICKNESS(T) | END TO END |
WEIGHT(KG) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | O.D1 | O.D2 | SCH 10S | SCH 40S | SCH 80S | H | SCH 10S | SCH 40S | SCH 80S | |||
| T1 | T2 | T1 | T2 | T1 | T2 | ||||||||
| 3/4 x 1/2 | 20 x 15 | 26.7 | 21.3 | 2.11 | 2.11 | 2.87 | 2.77 | 3.91 | 3.73 | 38.1 | 0.04 | 0.06 | 0.07 |
| 3/4 x 3/8 | 20 x 10 | 26.7 | 17.3 | 2.11 | 1.65 | 2.87 | 2.31 | 3.91 | 3.20 | 38.1 | 0.04 | 0.05 | 0.07 |
| 1 x 3/4 | 25 x 20 | 33.4 | 26.7 | 2.77 | 2.11 | 3.38 | 2.87 | 4.55 | 3.91 | 50.8 | 0.10 | 0.11 | 0.15 |
| 1 x 1/2 | 25 x 15 | 33.4 | 21.3 | 2.77 | 2.11 | 3.38 | 2.77 | 4.55 | 3.73 | 50.8 | 0.09 | 0.10 | 0.13 |
| 1¼ x 1 | 32 x 25 | 42.2 | 33.4 | 2.77 | 2.77 | 3.56 | 3.38 | 4.85 | 4.55 | 50.8 | 0.12 | 0.15 | 0.20 |
| 1¼ x 3/4 | 32 x 20 | 42.2 | 26.7 | 2.77 | 2.11 | 3.56 | 2.87 | 4.85 | 3.91 | 50.8 | 0.11 | 0.14 | 0.18 |
| 1¼ x 1/2 | 32 x 15 | 42.2 | 21.3 | 2.77 | 2.11 | 3.56 | 2.77 | 4.85 | 3.73 | 50.8 | 0.10 | 0.13 | 0.17 |
| 1½ x 1¼ | 40 x 32 | 48.3 | 42.2 | 2.77 | 2.77 | 3.68 | 3.56 | 5.08 | 4.85 | 63.5 | 0.19 | 0.24 | 0.32 |
| 1½ x 1 | 40 x 25 | 48.3 | 33.4 | 2.77 | 2.77 | 3.68 | 3.38 | 5.08 | 4.55 | 63.5 | 0.17 | 0.22 | 0.29 |
| 1½ x 3/4 | 40 x 20 | 48.3 | 26.7 | 2.77 | 2.11 | 3.68 | 2.87 | 5.08 | 3.91 | 63.5 | 0.15 | 0.20 | 0.26 |
| 1½ x 1/2 | 40 x 15 | 48.3 | 21.3 | 2.77 | 2.11 | 3.68 | 2.77 | 5.08 | 3.73 | 63.5 | 0.14 | 0.18 | 0.24 |
| 2 x 1½ | 50 x 40 | 60.3 | 48.3 | 2.77 | 2.77 | 3.91 | 3.68 | 5.54 | 5.08 | 76.2 | 0.27 | 0.37 | 0.51 |
| 2 x 1¼ | 50 x 32 | 60.3 | 42.2 | 2.77 | 2.77 | 3.91 | 3.56 | 5.54 | 4.85 | 76.2 | 0.25 | 0.35 | 0.48 |
| 2 x 1 | 50 x 25 | 60.3 | 33.4 | 2.77 | 2.77 | 3.91 | 3.38 | 5.54 | 4.55 | 76.2 | 0.23 | 0.32 | 0.43 |
| 2 x 3/4 | 50 x 20 | 60.3 | 26.7 | 2.77 | 2.11 | 3.91 | 2.87 | 5.54 | 3.91 | 76.2 | 0.21 | 0.29 | 0.40 |
| 2½ x 2 | 65 x 50 | 73.0 | 60.3 | 3.05 | 2.77 | 5.16 | 3.91 | 7.01 | 5.54 | 88.9 | 0.43 | 0.70 | 0.93 |
| 2½ x 1½ | 65 x 40 | 73.0 | 48.3 | 3.05 | 2.77 | 5.16 | 3.68 | 7.01 | 5.08 | 88.9 | 0.39 | 0.63 | 0.83 |
| 2½ x 1¼ | 65 x 32 | 73.0 | 42.2 | 3.05 | 2.77 | 5.16 | 3.56 | 7.01 | 4.85 | 88.9 | 0.37 | 0.60 | 0.79 |
| 2½ x 1 | 65 x 25 | 73.0 | 33.4 | 3.05 | 2.77 | 5.16 | 3.38 | 7.01 | 4.55 | 88.9 | 0.34 | 0.55 | 0.72 |
| 3 x 2½ | 80 x 65 | 88.9 | 73.0 | 3.05 | 3.05 | 5.49 | 5.16 | 7.62 | 7.01 | 88.9 | 0.53 | 0.92 | 1.24 |
| 3 x 2 | 80 x 50 | 88.9 | 60.3 | 3.05 | 2.77 | 5.49 | 3.91 | 7.62 | 5.54 | 88.9 | 0.48 | 0.84 | 1.13 |
| 3 x 1½ | 80 x 40 | 88.9 | 48.3 | 3.05 | 2.77 | 5.49 | 3.68 | 7.62 | 5.08 | 88.9 | 0.44 | 0.77 | 1.03 |
| 3 x 1¼ | 80 x 32 | 88.9 | 42.2 | 3.05 | 2.77 | 5.49 | 3.56 | 7.62 | 4.85 | 88.9 | 0.42 | 0.73 | 0.98 |
| 3½ x 3 | 90 x 80 | 101.6 | 88.9 | 3.05 | 3.05 | 5.74 | 5.49 | 8.08 | 7.62 | 101.6 | 0.71 | 1.30 | 1.78 |
| 3½ x 2½ | 90 x 65 | 101.6 | 73.0 | 3.05 | 3.05 | 5.74 | 5.16 | 8.08 | 7.01 | 101.6 | 0.65 | 1.18 | 1.62 |
| 3½ x 2 | 90 x 50 | 101.6 | 60.3 | 3.05 | 2.77 | 5.74 | 3.91 | 8.08 | 5.54 | 101.6 | 0.60 | 1.09 | 1.49 |
| 3½ x 1½ | 90 x 40 | 101.6 | 48.3 | 3.05 | 2.77 | 5.74 | 3.68 | 8.08 | 5.08 | 101.6 | 0.56 | 1.01 | 1.37 |
| 3½ x 1¼ | 90 x 32 | 101.6 | 42.2 | 3.05 | 2.77 | 5.74 | 3.56 | 8.08 | 4.85 | 101.6 | 0.53 | 0.96 | 1.31 |
| 4 x 3½ | 100 x 90 | 114.3 | 101.6 | 3.05 | 3.05 | 6.02 | 5.74 | 8.56 | 8.08 | 101.6 | 0.81 | 1.55 | 2.15 |
| 4 x 3 | 100 x 80 | 114.3 | 88.9 | 3.05 | 3.05 | 6.02 | 5.49 | 8.56 | 7.62 | 101.6 | 0.76 | 1.46 | 2.02 |
| 4 x 2½ | 100 x 65 | 114.3 | 73.0 | 3.05 | 3.05 | 6.02 | 5.16 | 8.56 | 7.01 | 101.6 | 0.70 | 1.34 | 1.84 |
| 4 x 2 | 100 x 50 | 114.3 | 60.3 | 3.05 | 2.77 | 6.02 | 3.91 | 8.56 | 5.54 | 101.6 | 0.65 | 1.24 | 1.71 |
| 4 x 1½ | 100 x 40 | 114.3 | 48.3 | 3.05 | 2.77 | 6.02 | 3.68 | 8.56 | 5.08 | 101.6 | 0.60 | 1.15 | 1.58 |
| 5 x 4 | 125 x 100 | 141.3 | 114.3 | 3.40 | 3.05 | 6.55 | 6.02 | 9.53 | 8.56 | 127.0 | 1.34 | 2.51 | 3.57 |
| 5 x 3½ | 125 x 90 | 141.3 | 101.6 | 3.40 | 3.05 | 6.55 | 5.74 | 9.53 | 8.08 | 127.0 | 1.27 | 2.38 | 3.37 |
| 5 x 3 | 125 x 80 | 141.3 | 88.9 | 3.40 | 3.05 | 6.55 | 5.49 | 9.53 | 7.62 | 127.0 | 1.20 | 2.25 | 3.18 |
| 5 x 2½ | 125 x 65 | 141.3 | 73.0 | 3.40 | 3.05 | 6.55 | 5.16 | 9.53 | 7.01 | 127.0 | 1.12 | 2.08 | 2.94 |
| 5 x 2 | 125 x 50 | 141.3 | 60.3 | 3.40 | 2.77 | 6.55 | 3.91 | 9.53 | 5.54 | 127.0 | 1.05 | 1.95 | 2.75 |
| 6 x 5 | 150 x 125 | 168.3 | 141.3 | 3.40 | 3.40 | 7.11 | 6.55 | 10.97 | 9.53 | 139.7 | 1.79 | 3.65 | 5.49 |
| 6 x 4 | 150 x 100 | 168.3 | 114.3 | 3.40 | 3.05 | 7.11 | 6.02 | 10.97 | 8.56 | 139.7 | 1.63 | 3.32 | 4.98 |
| 6 x 3½ | 150 x 90 | 168.3 | 101.6 | 3.40 | 3.05 | 7.11 | 5.74 | 10.97 | 8.08 | 139.7 | 1.56 | 3.16 | 4.73 |
| 6 x 3 | 150 x 80 | 168.3 | 88.9 | 3.40 | 3.05 | 7.11 | 5.49 | 10.97 | 7.62 | 139.7 | 1.48 | 3.01 | 4.49 |
| 6 x 2½ | 150 x 65 | 168.3 | 73.0 | 3.40 | 3.05 | 7.11 | 5.16 | 10.97 | 7.01 | 139.7 | 1.39 | 2.81 | 4.19 |
| 8 x 6 | 200 x 150 | 219.1 | 168.3 | 3.76 | 3.40 | 8.18 | 7.11 | 12.70 | 10.97 | 152.4 | 2.71 | 5.76 | 8.73 |
| 8 x 5 | 200 x 125 | 219.1 | 141.3 | 3.76 | 3.40 | 8.18 | 6.55 | 12.70 | 9.53 | 152.4 | 2.52 | 5.34 | 8.08 |
| 8 x 4 | 200 x 100 | 219.1 | 114.3 | 3.76 | 3.05 | 8.18 | 6.02 | 12.70 | 8.56 | 152.4 | 2.33 | 4.92 | 7.43 |
| 8 x 3½ | 200 x 90 | 219.1 | 101.6 | 3.76 | 3.05 | 8.18 | 5.74 | 12.70 | 8.08 | 152.4 | 2.24 | 4.73 | 7.12 |
| 10 x 8 | 250 x 200 | 273.0 | 219.1 | 4.19 | 3.76 | 9.27 | 8.18 | 12.70 | 12.70 | 177.8 | 4.49 | 9.72 | 13.13 |
| 10 x 6 | 250 x 150 | 273.0 | 168.3 | 4.19 | 3.40 | 9.27 | 7.11 | 12.70 | 10.97 | 177.8 | 4.02 | 8.68 | 11.70 |
| 10 x 5 | 250 x 125 | 273.0 | 141.3 | 4.19 | 3.40 | 9.27 | 6.55 | 12.70 | 9.53 | 177.8 | 3.77 | 8.13 | 10.94 |
| 10 x 4 | 250 x 100 | 273.0 | 114.3 | 4.19 | 3.05 | 9.27 | 6.02 | 12.70 | 8.56 | 177.8 | 3.52 | 7.57 | 10.18 |
| 12 x 10 | 300 x 250 | 323.8 | 273.0 | 4.57 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 203.2 | 6.80 | 13.94 | 18.37 |
| 12 x 8 | 300 x 200 | 323.8 | 219.1 | 4.57 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 203.2 | 6.17 | 12.64 | 16.64 |
| 12 x 6 | 300 x 150 | 323.8 | 168.3 | 4.57 | 3.40 | 9.53 | 7.11 | 12.70 | 10.97 | 203.2 | 5.59 | 11.41 | 15.00 |
| 12 x 5 | 300 x 125 | 323.8 | 141.3 | 4.57 | 3.40 | 9.53 | 6.55 | 12.70 | 9.53 | 203.2 | 5.27 | 10.76 | 14.13 |
| 14 x 12 | 350 x 300 | 355.6 | 323.8 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 330.2 | 13.17 | 25.88 | 34.16 |
| 14 x 10 | 350 x 250 | 355.6 | 273.0 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 330.2 | 12.17 | 23.89 | 31.51 |
| 14 x 8 | 350 x 200 | 355.6 | 219.1 | 4.78 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 330.2 | 11.11 | 21.78 | 28.69 |
| 14 x 6 | 350 x 150 | 355.6 | 168.3 | 4.78 | 3.40 | 9.53 | 7.11 | 12.70 | 10.97 | 330.2 | 10.11 | 19.79 | 26.04 |
| 16 x 14 | 400 x 350 | 406.4 | 355.6 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 355.6 | 15.93 | 31.36 | 41.44 |
| 16 x 12 | 400 x 300 | 406.4 | 323.8 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 355.6 | 15.26 | 30.02 | 39.65 |
| 16 x 10 | 400 x 250 | 406.4 | 273.0 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 355.6 | 14.18 | 27.88 | 36.79 |
| 16 x 8 | 400 x 200 | 406.4 | 219.1 | 4.78 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 355.6 | 13.04 | 25.60 | 33.76 |
| 18 x 16 | 450 x 400 | 457.2 | 406.4 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 19.37 | 38.20 | 50.52 |
| 18 x 14 | 450 x 350 | 457.2 | 355.6 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 18.22 | 35.90 | 47.46 |
| 18 x 12 | 450 x 300 | 457.2 | 323.8 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 381.0 | 17.50 | 34.46 | 45.54 |
| 18 x 10 | 450 x 250 | 457.2 | 273.0 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 381.0 | 16.35 | 32.16 | 42.48 |
| 20 x 18 | 500 x 450 | 508.0 | 457.2 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 33.45 | 57.06 | 75.53 |
| 20 x 16 | 500 x 400 | 508.0 | 406.4 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 31.67 | 53.99 | 71.44 |
| 20 x 14 | 500 x 350 | 508.0 | 355.6 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 29.89 | 50.93 | 67.36 |
| 20 x 12 | 500 x 300 | 508.0 | 323.8 | 5.54 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 28.77 | 49.01 | 64.81 |
| 22 x 20 | 550 x 500 | 558.8 | 508.0 | 5.54 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 508.0 | 37.01 | 63.18 | 83.69 |
| 22 x 18 | 550 x 450 | 558.8 | 457.2 | 5.54 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 508.0 | 35.23 | 60.12 | 79.61 |
| 22 x 16 | 550 x 400 | 558.8 | 406.4 | 5.54 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 508.0 | 33.45 | 57.06 | 75.53 |
| 22 x 14 | 550 x 350 | 558.8 | 355.6 | 5.54 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 508.0 | 31.67 | 53.99 | 71.44 |
| 24 x 22 | 600 x 550 | 609.6 | 558.8 | 6.35 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 46.44 | 69.31 | 91.86 |
| 24 x 20 | 600 x 500 | 609.6 | 508.0 | 6.35 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 44.40 | 66.25 | 87.77 |
| 24 x 18 | 600 x 450 | 609.6 | 457.2 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 42.36 | 63.18 | 83.69 |
| 24 x 16 | 600 x 400 | 609.6 | 406.4 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.0 | 40.31 | 60.12 | 79.61 |
| 26 x 24 | 650 x 600 | 660.4 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 75.43 | 90.52 | 120.02 |
| 26 x 22 | 650 x 550 | 660.4 | 558.8 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 72.37 | 86.85 | 115.13 |
| 26 x 20 | 650 x 500 | 660.4 | 508.0 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 69.31 | 83.17 | 110.23 |
| 26 x 18 | 650 x 450 | 660.4 | 457.2 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 66.26 | 79.50 | 105.33 |
| 28 x 26 | 700 x 650 | 711.2 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 81.54 | 97.88 | 129.82 |
| 28 x 24 | 700 x 600 | 711.2 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 78.48 | 94.20 | 124.92 |
| 28 x 20 | 700 x 500 | 711.2 | 508.0 | *7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 72.37 | 86.85 | 115.13 |
| 28 x 18 | 700 x 450 | 711.2 | 457.2 | *7.92 | 4.78 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 69.31 | 83.17 | 110.23 |
| 30 x 28 | 750 x 700 | 762.0 | 711.2 | 7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 87.65 | 105.23 | 139.62 |
| 30 x 26 | 750 x 650 | 762.0 | 660.4 | 7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 84.59 | 101.55 | 134.72 |
| 30 x 24 | 750 x 600 | 762.0 | 609.6 | 7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 81.54 | 97.88 | 129.82 |
| 30 x 20 | 750 x 500 | 762.0 | 508.0 | 7.92 | 5.54 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 75.43 | 90.52 | 120.02 |
| 32 x 30 | 800 x 750 | 812.8 | 762.0 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 93.76 | 112.58 | 149.42 |
| 32 x 28 | 800 x 700 | 812.8 | 711.2 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 90.70 | 108.91 | 144.52 |
| 32 x 26 | 800 x 650 | 812.8 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 87.65 | 105.23 | 139.62 |
| 32 x 24 | 800 x 600 | 812.8 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 84.59 | 101.55 | 134.72 |
| 34 x 32 | 850 x 800 | 863.6 | 812.8 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 99.87 | 119.93 | 159.22 |
| 34 x 30 | 850 x 750 | 863.6 | 762.0 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 96.81 | 116.26 | 154.32 |
| 34 x 26 | 850 x 650 | 863.6 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 90.70 | 108.91 | 144.52 |
| 34 x 24 | 850 x 600 | 863.6 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 87.65 | 105.23 | 139.62 |
| 36 x 34 | 900 x 850 | 914.4 | 863.6 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 105.98 | 127.29 | 169.01 |
| 36 x 32 | 900 x 800 | 914.4 | 812.8 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 102.92 | 123.61 | 164.12 |
| 36 x 30 | 900 x 750 | 914.4 | 762.0 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 99.87 | 119.93 | 159.22 |
| 36 x 26 | 900 x 650 | 914.4 | 660.4 | *7.92 | 7.92 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 93.76 | 112.58 | 149.42 |
| 36 x 24 | 900 x 600 | 914.4 | 609.6 | *7.92 | 6.35 | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 90.70 | 108.91 | 144.52 |
| 38 x 36 | 950 x 900 | 965.2 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 134.64 | 178.81 | |
| 38 x 34 | 950 x 850 | 965.2 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 130.96 | 173.91 | |
| 38 x 32 | 950 x 800 | 965.2 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 127.29 | 169.01 | |
| 38 x 30 | 950 x 750 | 965.2 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 123.61 | 164.12 | |
| 38 x 28 | 950 x 700 | 965.2 | 711.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 119.93 | 159.22 | |
| 38 x 26 | 950 x 650 | 965.2 | 660.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 116.26 | 154.32 | |
| 40 x 38 | 1000 x 950 | 1016.0 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 141.99 | 188.61 | |
| 40 x 36 | 1000 x 900 | 1016.0 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 138.31 | 183.71 | |
| 40 x 34 | 1000 x 850 | 1016.0 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 134.64 | 178.81 | |
| 40 x 32 | 1000 x 800 | 1016.0 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 130.96 | 173.91 | |
| 40 x 30 | 1000 x 750 | 1016.0 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 127.29 | 169.01 | |
| 42 x 40 | 1050 x 1000 | 1066.8 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 149.34 | 198.41 | |
| 42 x 38 | 1050 x 950 | 1066.8 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 145.67 | 193.51 | |
| 42 x 36 | 1050 x 900 | 1066.8 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 141.99 | 188.61 | |
| 42 x 34 | 1050 x 850 | 1066.8 | 863.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 138.31 | 183.71 | |
| 42 x 32 | 1050 x 800 | 1066.8 | 812.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 134.64 | 178.81 | |
| 42 x 30 | 1050 x 750 | 1066.8 | 762.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 130.96 | 173.91 | |
| 44 x 42 | 1100 x 1050 | 1117.6 | 1066.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 156.70 | 208.21 | |
| 44 x 40 | 1100 x 1000 | 1117.6 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 153.02 | 203.31 | |
| 44 x 38 | 1100 x 950 | 1117.6 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 149.34 | 198.41 | |
| 44 x 36 | 1100 x 900 | 1117.6 | 914.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 609.6 | 145.67 | 193.51 | |
| 46 x 44 | 1150 x 1100 | 1168.4 | 1117.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 191.39 | 254.34 | |
| 46 x 42 | 1150 x 1050 | 1168.4 | 1066.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 187.10 | 248.62 | |
| 46 x 40 | 1150 x 1000 | 1168.4 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 182.81 | 242.91 | |
| 46 x 38 | 1150 x 950 | 1168.4 | 965.2 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 178.52 | 237.19 | |
| 48 x 46 | 1200 x 1150 | 1219.2 | 1168.4 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 199.97 | 265.77 | |
| 48 x 44 | 1200 x 1100 | 1219.2 | 1117.6 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 195.68 | 260.05 | |
| 48 x 42 | 1200 x 1050 | 1219.2 | 1066.8 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 191.39 | 254.34 | |
| 48 x 40 | 1200 x 1000 | 1219.2 | 1016.0 | - | - | *9.53 | 9.53 | *12.70 | 12.70 | 711.2 | 187.10 | 248.62 | |
Asterisks(*) denote JINILBEND Standards as no internationally Recongnized Standards for these wall thickness have been estabilshed.
