- LATERAL

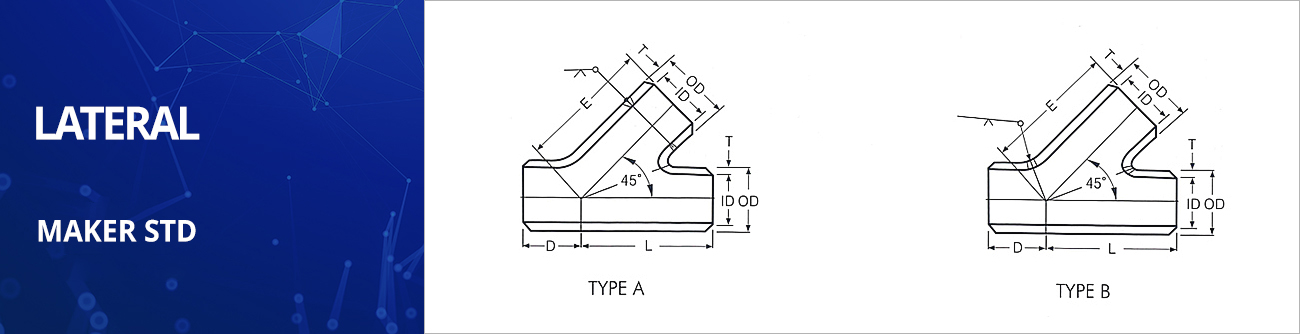

LATERAL
| MAKER STD | UNIT : mm (Inch=>mm 환산) | |||||||||||
| NOMINAL PIPE SIZE (inch) |
TYPE | OUTSIDE DIAMETER (O.D) |
SCH 10S | SCH 40S | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CENTER TO END DIMENSION |
WALL THICK. |
INSIDE DIM. |
WEIGHT (KG) |
CENTER TO END DIMENSION |
WALL THICK. |
INSIDE DIM. |
WEIGHT (KG) |
|||||
| L & E | D | T | I.D | L & E | D | T | I.D | |||||
| 1 | B | 33.4 | 146.1 | 44.5 | 2.77 | 27.9 | 0.72 | 146.1 | 44.5 | 3.38 | 26.6 | 0.88 |
| 1¼ | B | 42.2 | 158.8 | 44.5 | 2.77 | 36.7 | 0.97 | 158.8 | 44.5 | 3.56 | 35.1 | 1.24 |
| 1½ | B | 48.3 | 177.8 | 50.8 | 2.77 | 42.8 | 1.24 | 177.8 | 50.8 | 3.68 | 40.9 | 1.65 |
| 2 | B | 60.3 | 203.2 | 63.5 | 2.77 | 54.8 | 1.78 | 203.2 | 63.5 | 3.91 | 52.5 | 2.51 |
| 2½ | B | 73.0 | 241.3 | 63.5 | 3.05 | 66.9 | 2.74 | 241.3 | 63.5 | 5.16 | 62.7 | 4.64 |
| 3 | B | 88.9 | 254.0 | 76.2 | 3.05 | 82.8 | 3.52 | 254.0 | 76.2 | 5.49 | 77.9 | 6.33 |
| 3½ | B | 101.6 | 292.1 | 76.2 | 3.05 | 95.5 | 4.54 | 292.1 | 76.2 | 5.74 | 90.1 | 8.55 |
| 4 | B | 114.3 | 304.8 | 76.2 | 3.05 | 108.2 | 5.25 | 304.8 | 76.2 | 6.02 | 102.3 | 10.36 |
| 5 | B | 141.3 | 342.9 | 88.9 | 3.40 | 134.5 | 8.07 | 342.9 | 88.9 | 6.55 | 128.2 | 15.55 |
| 6 | B | 168.3 | 368.3 | 88.9 | 3.40 | 161.5 | 10.06 | 368.3 | 88.9 | 7.11 | 154.1 | 21.04 |
| 8 | B | 219.1 | 444.5 | 114.3 | 3.76 | 211.6 | 17.39 | 444.5 | 114.3 | 8.18 | 202.7 | 37.84 |
| 10 | B | 273.0 | 520.7 | 127.0 | 4.19 | 264.6 | 27.76 | 520.7 | 127.0 | 9.27 | 254.5 | 61.43 |
| 12 | B | 323.8 | 622.3 | 139.7 | 4.57 | 314.7 | 42.55 | 622.3 | 139.7 | 9.53 | 304.7 | 88.72 |
| 14 | B | 355.6 | 685.8 | 152.4 | 4.78 | 346.0 | 53.83 | 685.8 | 152.4 | 9.53 | 336.5 | 107.32 |
| 16 | B | 406.4 | 762.0 | 165.1 | 4.78 | 396.8 | 67.76 | 762.0 | 165.1 | 9.53 | 387.3 | 135.10 |
| 18 | B | 457.2 | 812.8 | 177.8 | 4.78 | 447.6 | 80.49 | 812.8 | 177.8 | 9.53 | 438.1 | 160.47 |
| 20 | B | 508.0 | 889.0 | 203.2 | 5.54 | 496.9 | 113.58 | 889.0 | 203.2 | 9.53 | 488.9 | 195.39 |
| 24 | B | 609.6 | 1028.7 | 228.6 | 6.35 | 596.9 | 178.66 | 1028.7 | 228.6 | 9.53 | 590.5 | 268.12 |
